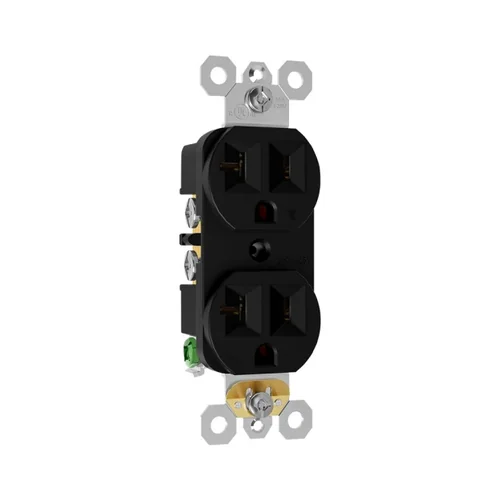

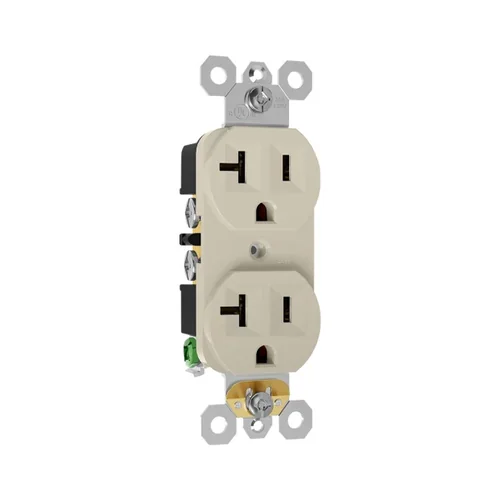

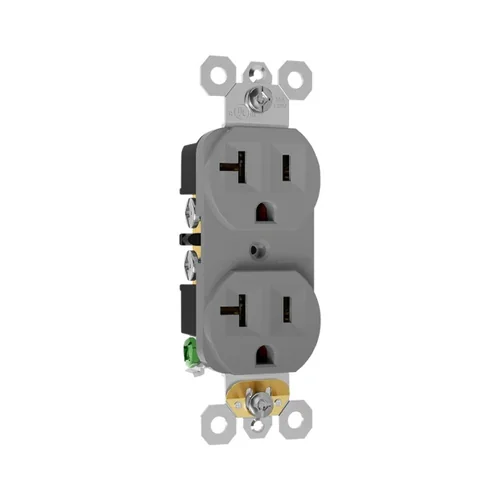

Click to enlarge7 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.
20A Standard Duplex Receptacle NEMA 5-20R
20A 125V AC receptacle with a NEMA 5-20R face.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
| Amperage | 20A |
|---|---|
| Voltage | 125V AC |
| NEMA | 5-20R |
| USB Rating | None |
| GFCI Type | Not GFCI |
| Trip Level | Not applicable |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What TMDR20 is, and what you get
20A 125V AC receptacle with a NEMA 5-20R face.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
- Match the plate opening to the face — duplex and decorator plates are not interchangeable.
- 20A is a branch-circuit decision, not an upgrade: confirm the circuit, not the look.
- TR/WR models still need the correct cover on the same order for a damp-location install.
- 20A 125V NEMA 5-20R duplex receptacle with standard T-slot configuration
- Non-tamper-resistant indoor outlet for placements where NEC 406.12 exceptions apply
- T-slot geometry accepts both 15A and 20A compatible plug patterns
- Built for heavy-duty indoor replacement, MRO sourcing, and dedicated equipment loads
- Non-WR standard device format for dry-location applications only
- Seven finish options support retrofit color matching across commercial and industrial interiors
Every field we hold for TMDR20
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL/cUL Listed |
|---|---|
| Standards & Certifications | UL Listed / UL 498 |
| Own US Patents | Yes |
| Country of Origin | China |
| GFCI Type | Not GFCI |
|---|---|
| Voltage | 125V AC |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | None |
| USB A | None |
| USB C | None |
| Pole | 2-pole, 3-wire grounding |
| Number of Receptacles | Duplex (2) |
| Trip Level | Not applicable |
| Safety Function | Standard grounding receptacle |
| Tamper Resistant | No |
| Weather Resistant | No |
| Color | White, Black, Ivory, Almond, Grey, Brown, Graphite |
|---|---|
| Finish | Standard smooth finish |
| Features | Standard duplex format, grounding type, NEMA 5-20R T-slot, non-TR, non-WR |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Wiring Method | Back Wire and Side Wire |
|---|---|
| Grounding | Yes |
| Terminal | Side and Back Wire |
| Application Sector | Heavy-duty indoor replacement, MRO sourcing, dedicated equipment loads, commercial and industrial interiors |
|---|
| Product Code | TMDR20 |
|---|---|
| Wall Plate Included | Yes |
| Configuration | T-slot duplex receptacle |
|---|---|
| GFCI | No |
| Available Colors | White, Black, Ivory, Almond, Grey, Brown, Graphite |
Use this one, or step to another
- Contractors sourcing 20A NEMA 5-20R receptacles for dedicated indoor equipment circuits
- MRO buyers replacing worn T-slot outlets in maintenance, workshop, and facility environments
- Distributors that need a non-TR 20A duplex option for commercial and industrial replacement demand
- Procurement teams handling server rooms, equipment areas, copy rooms, or back-of-house loads that call for 20A receptacle geometry
- Choose a 15A NEMA 5-15R receptacle when the project is built around standard 15A outlet geometry rather than 5-20R T-slot configuration TMDR15 — 15A Standard Duplex Receptacle Non-TR
- Choose a TR receptacle when the installation falls under NEC 406.12 required locations TDT20 — 20A Tamper-Resistant Duplex Receptacle
- Choose a WR or GFCI device when the environment or branch-circuit protection requirement calls for those features rather than a standard indoor receptacle TDTW20 — 20A TR/WR Duplex Receptacle
How to Replace a 20A Standard Duplex Receptacle
The plate for this device is T9602 1-Gang Duplex Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where TMDR20 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Receptacle & USB wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for TMDR20Issued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with rating, face type, shutter construction and terminal data.
- Certification statement — the listing recorded for the model on this page, named on the quotation.
- Plate and cover cross-reference — which opening and which cover go with this face, so the schedule and the plate order agree.
- Packing and carton marking — case pack and barcode layout, which decides a high-count bid as often as the unit price does.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
TMDR20 — answered
TR is not called for on this job — is the standard model the right order?
It is a legitimate product for locations outside NEC 406.12, and this model is published as non-TR rather than presented as a substitute. Send us the project type with the order: if the application is residential, hospitality or public-access we will come back and confirm before quoting rather than ship a device that fails at inspection.
Can the 15A model be used instead of this 20A face?
Only if the branch circuit is 15A. The T-slot geometry of a NEMA 5-20R face exists so a 20A plug cannot be inserted into a 15A circuit — swapping the face is a circuit decision, and the two part numbers are not interchangeable on a schedule without the circuit changing with them.
What certification does this model carry?
The certification recorded for this model in our product data is: UL/cUL Listed. The quotation names the devices the certification covers, and where a line item does not carry a qualification in our data we will say so rather than present it as listed.
Do the finishes match the switches and plates?
Devices, plates and switches are drawn from one palette: White, Black, Ivory, Almond, Grey, Brown, Graphite. That is what keeps a unit turn from reading as a patchwork of whites by room, and it is why the colour is confirmed with the model list rather than after production starts. Availability is confirmed per model at quote stage.
What do you need to quote a unit turn?
The device schedule by room type and floor, with quantities per line. We return the model list, the face and finish per line, the plate cross-reference for each opening and the carton count — which is usually the number that decides the bid.
Answers above are specific to TMDR20; the model list, quantities and project type is what we need to quote it back in one business day.
