Click to enlarge7 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.

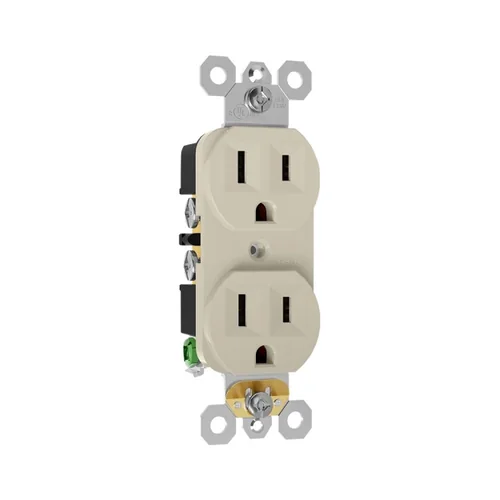

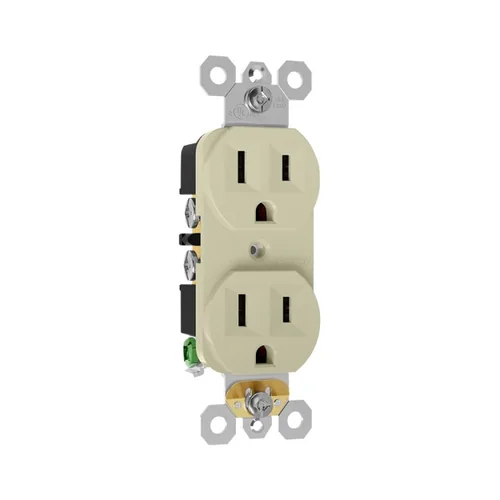

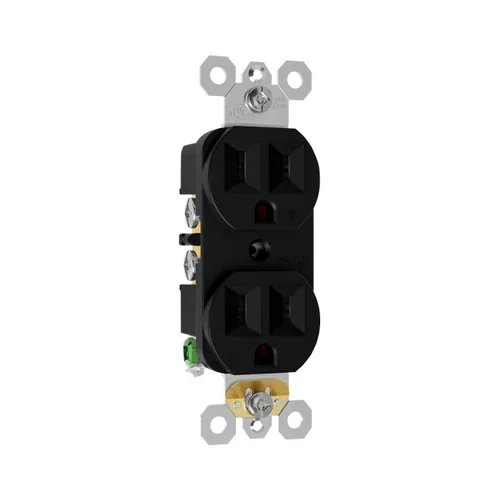

15A Standard Duplex Receptacle Non-TR
15A 125V AC receptacle with a NEMA 5-15R face.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
| Amperage | 15A |
|---|---|
| Voltage | 125V AC |
| NEMA | 5-15R |
| USB Rating | None |
| GFCI Type | Not GFCI |
| Trip Level | Not applicable |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What TMDR15 is, and what you get
15A 125V AC receptacle with a NEMA 5-15R face.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
- Match the plate opening to the face — duplex and decorator plates are not interchangeable.
- 20A is a branch-circuit decision, not an upgrade: confirm the circuit, not the look.
- TR/WR models still need the correct cover on the same order for a damp-location install.
- 15A 125V NEMA 5-15R standard duplex receptacle for indoor branch-circuit use
- Non-tamper-resistant design for installations covered by NEC 406.12 exceptions
- UL listed grounding receptacle for routine replacement and distributor sourcing
- Standard indoor device format that is not WR and not GFCI
- Seven finish options support retrofit color matching and maintenance inventory planning
- Suitable for elevated receptacle points, appliance spaces, and other permitted non-TR placements
Every field we hold for TMDR15
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL/cUL Listed |
|---|---|
| Standards & Certifications | UL Listed / UL 498 |
| Own US Patents | Yes |
| Country of Origin | China |
| GFCI Type | Not GFCI |
|---|---|
| Voltage | 125V AC |
| Amperage | 15A |
| NEMA | 5-15R |
| USB Rating | None |
| USB A | None |
| USB C | None |
| Pole | 2-pole, 3-wire grounding |
| Number of Receptacles | Duplex (2) |
| Trip Level | Not applicable |
| Safety Function | Standard grounding receptacle |
| Tamper Resistant | No |
| Weather Resistant | No |
| Color | White, Black, Ivory, Almond, Grey, Brown, Graphite |
|---|---|
| Finish | Standard smooth finish |
| Features | Standard duplex format, grounding type, non-TR, non-WR |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Wiring Method | Back Wire and Side Wire |
|---|---|
| Grounding | Yes |
| Terminal | Side and Back Wire |
| Application Sector | Indoor replacement work, appliance-space installations, elevated receptacle points, maintenance sourcing |
|---|
| Product Code | TMDR15 |
|---|---|
| Wall Plate Included | Yes |
| GFCI | No |
|---|---|
| Certification | UL Listed |
| Available Colors | White, Black, Ivory, Almond, Grey, Brown, Graphite |
Use this one, or step to another
- Contractors buying standard 15A duplex receptacles for bulk indoor replacement work
- Distributors carrying a non-TR NEMA 5-15R option for legacy spec matching
- MRO buyers sourcing basic grounding receptacles in multiple finish colors
- Procurement teams handling appliance-space or elevated receptacle replacements where non-TR devices are permitted
- Choose a TR receptacle for dwelling units, guest rooms, child care, and other locations covered by NEC 406.12 TDT15 — 15A Tamper-Resistant Duplex Receptacle
- Choose a WR receptacle for damp, wet, or exterior environments TDTW15 — 15A TR/WR Duplex Receptacle
- Choose a 20A receptacle when the project requires a NEMA 5-20R configuration rather than a 5-15R device TMDR20 — 20A Standard Duplex Receptacle NEMA 5-20R
How to Replace a Standard Duplex Receptacle
The plate for this device is T9602 1-Gang Duplex Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where TMDR15 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Receptacle & USB wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for TMDR15Issued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with rating, face type, shutter construction and terminal data.
- Certification statement — the listing recorded for the model on this page, named on the quotation.
- Plate and cover cross-reference — which opening and which cover go with this face, so the schedule and the plate order agree.
- Packing and carton marking — case pack and barcode layout, which decides a high-count bid as often as the unit price does.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
TMDR15 — answered
TR is not called for on this job — is the standard model the right order?
It is a legitimate product for locations outside NEC 406.12, and this model is published as non-TR rather than presented as a substitute. Send us the project type with the order: if the application is residential, hospitality or public-access we will come back and confirm before quoting rather than ship a device that fails at inspection.
What certification does this model carry?
The certification recorded for this model in our product data is: not stated in our data. The quotation names the devices the certification covers, and where a line item does not carry a qualification in our data we will say so rather than present it as listed.
Do the finishes match the switches and plates?
Devices, plates and switches are drawn from one palette: White, Black, Ivory, Almond, Grey, Brown, Graphite. That is what keeps a unit turn from reading as a patchwork of whites by room, and it is why the colour is confirmed with the model list rather than after production starts. Availability is confirmed per model at quote stage.
What do you need to quote a unit turn?
The device schedule by room type and floor, with quantities per line. We return the model list, the face and finish per line, the plate cross-reference for each opening and the carton count — which is usually the number that decides the bid.
Answers above are specific to TMDR15; the model list, quantities and project type is what we need to quote it back in one business day.
15A Tamper-Resistant Duplex Receptacle
20A Tamper-Resistant Duplex Receptacle
15A TR/WR Duplex Receptacle
15A Standard Decorator Receptacle (Non-TR)Send the list, get the package back
Model list, quantities and project type is all we need to start. The quotation comes back in one business day with the specification sheet for each line item, the listing reference it holds and the packing detail for the DC — one document, not four.
