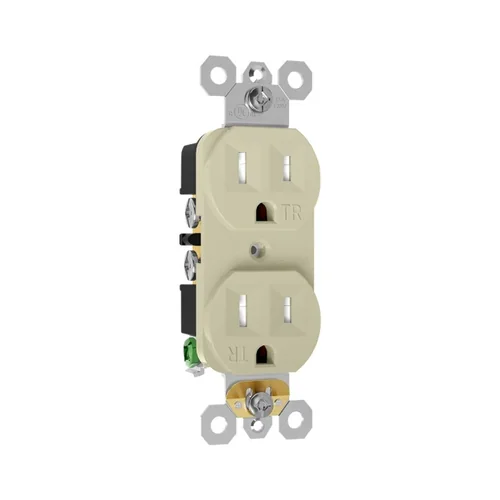

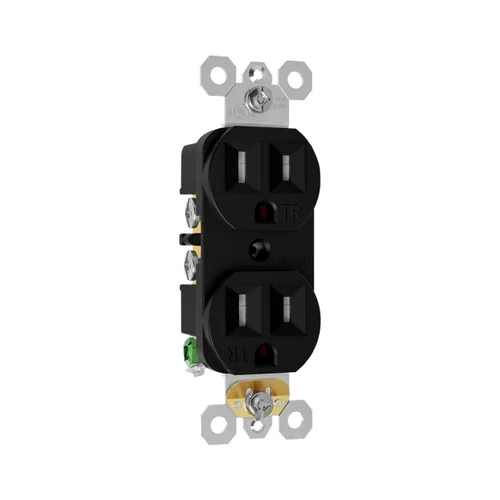

15A Tamper-Resistant Duplex Receptacle
15A 125V AC receptacle with a NEMA 5-15R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
| Amperage | 15A |
|---|---|
| Voltage | 125V AC |
| NEMA | 5-15R |
| USB Rating | None |
| GFCI Type | Not GFCI |
| Trip Level | Not applicable |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What TDT15 is, and what you get
15A 125V AC receptacle with a NEMA 5-15R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
- Match the plate opening to the face — duplex and decorator plates are not interchangeable.
- 20A is a branch-circuit decision, not an upgrade: confirm the circuit, not the look.
- TR/WR models still need the correct cover on the same order for a damp-location install.
- 15A 125V NEMA 5-15R tamper-resistant duplex receptacle for indoor branch-circuit use
- Built-in TR shutters support NEC 406.12 code-driven installations in required occupancies
- Standard non-WR indoor format for residential, hospitality, education, and care interiors
- Grounding duplex configuration for everyday project sourcing and replacement work
- Back wire and side wire termination support routine contractor installation workflows
- Available in seven finish options for large-volume color matching across interior projects
Every field we hold for TDT15
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL/cUL Listed |
|---|---|
| Standards & Certifications | UL Listed / UL 498 |
| Own US Patents | Yes |
| Country of Origin | China |
| GFCI Type | Not GFCI |
|---|---|
| Voltage | 125V AC |
| Amperage | 15A |
| NEMA | 5-15R |
| USB Rating | None |
| USB A | None |
| USB C | None |
| Pole | 2-pole, 3-wire grounding |
| Number of Receptacles | Duplex (2) |
| Trip Level | Not applicable |
| Safety Function | Tamper-resistant shutter protection |
| Tamper Resistant | Yes |
| Weather Resistant | No |
| Color | White, Black, Ivory, Almond, Grey, Brown, Graphite |
|---|---|
| Finish | Standard smooth finish |
| Features | Standard duplex format, grounding type, TR shutters, non-WR |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Wiring Method | Back Wire and Side Wire |
|---|---|
| Grounding | Yes |
| Terminal | Side and Back Wire |
| Application Sector | Indoor residential, hospitality, education, clinic, dormitory, and care-facility replacement and project sourcing |
|---|
| Product Code | TDT15 |
|---|---|
| Wall Plate Included | Yes |
| GFCI | No |
|---|---|
| Available Colors | White, Black, Ivory, Almond, Grey, Brown, Graphite |
Use this one, or step to another
- Contractors wiring apartments, condos, single-family homes, and common residential areas where TR is required
- Hospitality buyers sourcing compliant guest room and guest suite receptacles
- Distributors carrying a high-volume 15A NEMA 5-15R TR outlet for daily replacement demand
- Project teams specifying education, child care, clinic, dormitory, and assisted-living interiors
- Choose a WR TR receptacle for exterior, damp, or weather-exposed locations TDTW15 — 15A TR/WR Duplex Receptacle
- Choose a GFCI device where ground-fault protection is required by the installation TS15 — 15A Non-Tamper Resistant Self-Test GFCI Receptacle
- Choose a 20A receptacle when the project requires NEMA 5-20R outlet geometry rather than standard 5-15R TDT20 — 20A Tamper-Resistant Duplex Receptacle
How to Replace a 15A Tamper-Resistant Duplex Receptacle
The plate for this device is T9602 1-Gang Duplex Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where TDT15 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Receptacle & USB wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for TDT15Issued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with rating, face type, shutter construction and terminal data.
- Certification statement — the listing recorded for the model on this page, named on the quotation.
- Plate and cover cross-reference — which opening and which cover go with this face, so the schedule and the plate order agree.
- Packing and carton marking — case pack and barcode layout, which decides a high-count bid as often as the unit price does.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
TDT15 — answered
What does the TR marking on the TDT15 actually do?
It means the internal shutters stay closed unless both slots are pressed at the same time by a plug. NEC 406.12 requires a listed TR receptacle in dwelling units, guest rooms, education and child-care facilities, dormitories, care occupancies and similar spaces — and a non-TR device with add-on plastic caps is not an equivalent to a listed TR receptacle.
What certification does this model carry?
The certification recorded for this model in our product data is: UL/cUL Listed. The quotation names the devices the certification covers, and where a line item does not carry a qualification in our data we will say so rather than present it as listed.
Do the finishes match the switches and plates?
Devices, plates and switches are drawn from one palette: White, Black, Ivory, Almond, Grey, Brown, Graphite. That is what keeps a unit turn from reading as a patchwork of whites by room, and it is why the colour is confirmed with the model list rather than after production starts. Availability is confirmed per model at quote stage.
What do you need to quote a unit turn?
The device schedule by room type and floor, with quantities per line. We return the model list, the face and finish per line, the plate cross-reference for each opening and the carton count — which is usually the number that decides the bid.
Answers above are specific to TDT15; the model list, quantities and project type is what we need to quote it back in one business day.
