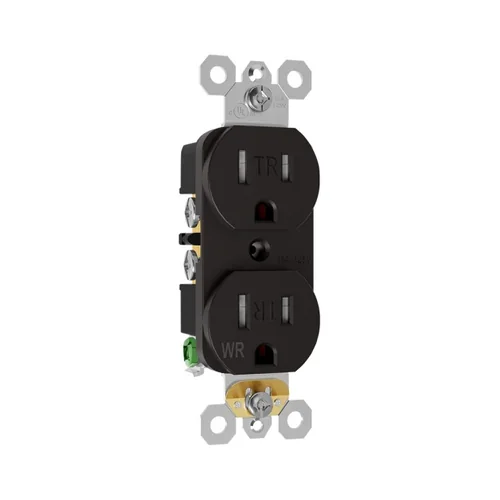

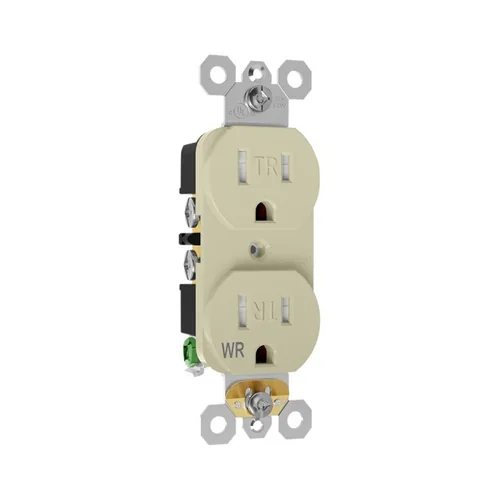

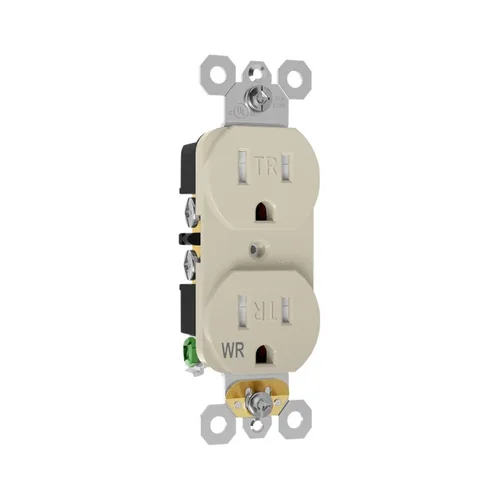

Click to enlarge7 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.
15A TR/WR Duplex Receptacle
15A 125V AC receptacle with a NEMA 5-15R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. The body carries the weather-resistant construction for damp and wet locations — the cover is a separate line item.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
| Amperage | 15A |
|---|---|
| Voltage | 125V AC |
| NEMA | 5-15R |
| USB Rating | None |
| GFCI Type | Not GFCI |
| Trip Level | Not applicable |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What TDTW15 is, and what you get
15A 125V AC receptacle with a NEMA 5-15R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. The body carries the weather-resistant construction for damp and wet locations — the cover is a separate line item.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
- Match the plate opening to the face — duplex and decorator plates are not interchangeable.
- 20A is a branch-circuit decision, not an upgrade: confirm the circuit, not the look.
- TR/WR models still need the correct cover on the same order for a damp-location install.
- 15A 125V NEMA 5-15R duplex receptacle with both tamper-resistant and weather-resistant construction
- Built for damp and wet location use when installed with the required cover and protection method
- Standard WR receptacle format for downstream wiring after a GFCI device or breaker
- Non-GFCI design keeps device cost lower for multi-outlet exterior runs
- Suitable for patios, decks, detached garages, basements, greenhouses, and exterior wall installations
- Available in seven finish options for outdoor retrofit and property-wide color matching
Every field we hold for TDTW15
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL/cUL Listed |
|---|---|
| Standards & Certifications | UL Listed / UL 498 |
| Own US Patents | Yes |
| Country of Origin | China |
| GFCI Type | Not GFCI |
|---|---|
| Voltage | 125V AC |
| Amperage | 15A |
| NEMA | 5-15R |
| USB Rating | None |
| USB A | None |
| USB C | None |
| Pole | 2-pole, 3-wire grounding |
| Number of Receptacles | Duplex (2) |
| Trip Level | Not applicable |
| Safety Function | Tamper-resistant shutter protection with weather-resistant construction |
| Tamper Resistant | Yes |
| Weather Resistant | Yes |
| Color | White, Black, Ivory, Almond, Grey, Brown, Graphite |
|---|---|
| Finish | Standard smooth finish |
| Features | Standard duplex format, grounding type, TR shutters, WR construction, non-GFCI |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Wiring Method | Back Wire and Side Wire |
|---|---|
| Grounding | Yes |
| Terminal | Side and Back Wire |
| Application Sector | Outdoor patios, decks, detached garages, basements, greenhouses, exterior walls, and downstream outdoor wiring runs |
|---|
| Product Code | TDTW15 |
|---|---|
| Wall Plate Included | Yes |
| GFCI | No |
|---|---|
| Available Colors | White, Black, Ivory, Almond, Grey, Brown, Graphite |
Use this one, or step to another
- Contractors wiring patios, decks, landscape circuits, detached garages, and other damp or wet exterior runs from an upstream GFCI source
- Buyers sourcing standard WR replacement receptacles for outdoor maintenance and property upgrades
- Project teams needing a TR/WR duplex outlet for basements, greenhouses, utility rooms, and other moisture-prone areas
- Distributors carrying downstream outdoor receptacles for landscape, exterior wall, and weather-exposed retrofit demand
- Choose a WR GFCI receptacle when the device itself needs to provide local ground-fault protection WTST15 — 15A Weather-Resistant Self-Test GFCI Receptacle
- Choose a standard indoor TR receptacle when the installation is fully dry and not exposed to damp or wet conditions TDT15 — 15A Tamper-Resistant Duplex Receptacle
- Choose a 20A TR/WR receptacle when the project requires NEMA 5-20R outlet geometry rather than 5-15R TDTW20 — 20A TR/WR Duplex Receptacle
TDTW15 on camera
Watch on YouTube15A Tamper-Resistant Weather-Resistant Duplex Receptacle Video
How to Wire a Receptacle (Standard 15A/20A NA Market)
The plate for this device is T9602 1-Gang Duplex Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where TDTW15 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Receptacle & USB wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for TDTW15Issued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with rating, face type, shutter construction and terminal data.
- Certification statement — the listing recorded for the model on this page, named on the quotation.
- Plate and cover cross-reference — which opening and which cover go with this face, so the schedule and the plate order agree.
- Packing and carton marking — case pack and barcode layout, which decides a high-count bid as often as the unit price does.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
TDTW15 — answered
What does the TR marking on the TDTW15 actually do?
It means the internal shutters stay closed unless both slots are pressed at the same time by a plug. NEC 406.12 requires a listed TR receptacle in dwelling units, guest rooms, education and child-care facilities, dormitories, care occupancies and similar spaces — and a non-TR device with add-on plastic caps is not an equivalent to a listed TR receptacle.
Is WR enough on its own for an exterior wall?
No. The weather-resistant construction covers the device; the cover and the box are the other half of the assembly and they are separate line items. Order the cover with the same PO and check that the enclosure matches the plate and the device depth.
What certification does this model carry?
The certification recorded for this model in our product data is: UL/cUL Listed. The quotation names the devices the certification covers, and where a line item does not carry a qualification in our data we will say so rather than present it as listed.
Do the finishes match the switches and plates?
Devices, plates and switches are drawn from one palette: White, Black, Ivory, Almond, Grey, Brown, Graphite. That is what keeps a unit turn from reading as a patchwork of whites by room, and it is why the colour is confirmed with the model list rather than after production starts. Availability is confirmed per model at quote stage.
What do you need to quote a unit turn?
The device schedule by room type and floor, with quantities per line. We return the model list, the face and finish per line, the plate cross-reference for each opening and the carton count — which is usually the number that decides the bid.
Answers above are specific to TDTW15; the model list, quantities and project type is what we need to quote it back in one business day.
