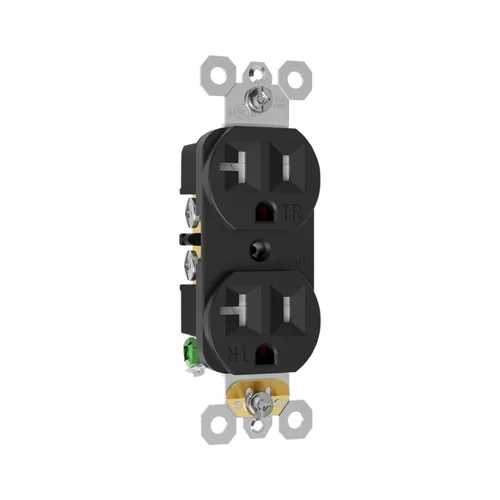

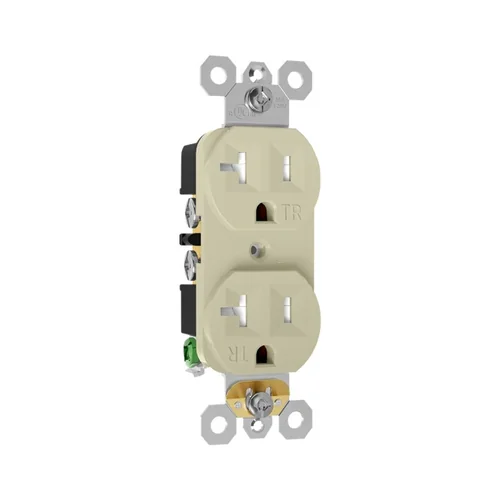

Click to enlarge7 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.
20A Tamper-Resistant Duplex Receptacle
15A 125V AC receptacle with a NEMA 5-15R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. The body carries the weather-resistant construction for damp and wet locations — the cover is a separate line item.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
| Amperage | 15A |
|---|---|
| Voltage | 125V AC |
| NEMA | 5-15R |
| USB Rating | None |
| GFCI Type | Not GFCI |
| Trip Level | Not applicable |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What TDT20 is, and what you get
15A 125V AC receptacle with a NEMA 5-15R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. The body carries the weather-resistant construction for damp and wet locations — the cover is a separate line item.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
- Match the plate opening to the face — duplex and decorator plates are not interchangeable.
- 20A is a branch-circuit decision, not an upgrade: confirm the circuit, not the look.
- TR/WR models still need the correct cover on the same order for a damp-location install.
- 20A 125V NEMA 5-20R tamper-resistant duplex receptacle for indoor branch-circuit use
- T-slot face pattern supports true 20A receptacle identification for heavier plug-in loads
- Built-in TR shutters support NEC 406.12 installations in required occupancies
- Standard non-WR indoor format for kitchens, public interiors, education, care, and hospitality projects
- Back wire and side wire termination support routine contractor installation workflows
- Available in seven finish options for color matching across large interior deployments
Every field we hold for TDT20
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL/cUL Listed |
|---|---|
| Standards & Certifications | UL Listed / UL 498 |
| Own US Patents | Yes |
| Country of Origin | China |
| GFCI Type | Not GFCI |
|---|---|
| Voltage | 125V AC |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | None |
| USB A | None |
| USB C | None |
| Pole | 2-pole, 3-wire grounding |
| Number of Receptacles | Duplex (2) |
| Trip Level | Not applicable |
| Safety Function | Tamper-resistant shutter protection |
| Tamper Resistant | Yes |
| Weather Resistant | No |
| Color | White, Black, Ivory, Almond, Grey, Brown, Graphite |
|---|---|
| Finish | Standard smooth finish |
| Features | Standard duplex format, grounding type, NEMA 5-20R T-slot, TR shutters, non-WR |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Wiring Method | Back Wire and Side Wire |
|---|---|
| Grounding | Yes |
| Terminal | Side and Back Wire |
| Application Sector | Indoor kitchens, hospitality interiors, education facilities, public-access commercial spaces, and heavy-duty interior replacement work |
|---|
| Product Code | TDT20 |
|---|---|
| Wall Plate Included | Yes |
| GFCI | No |
|---|---|
| Available Colors | White, Black, Ivory, Almond, Grey, Brown, Graphite |
Use this one, or step to another
- Electrical contractors wiring interior 20A outlet locations in code-covered public or residential-adjacent spaces
- Buyers sourcing 5-20R TR receptacles for kitchens, schools, clinics, hospitality, and shared building interiors
- Distributors that need a heavier-duty TR option beyond standard 15A duplex inventory
- Project teams replacing existing 20A TR outlets where finish matching and public-space compliance both matter
- Choose a 15A TR receptacle when the job uses standard NEMA 5-15R outlet geometry TDT15 — 15A Tamper-Resistant Duplex Receptacle
- Choose a 20A non-TR receptacle only where NEC 406.12 exceptions actually remove the TR requirement TMDR20 — 20A Standard Duplex Receptacle NEMA 5-20R
- Choose a WR or GFCI model when weather exposure or ground-fault protection is part of the installation requirement TDTW20 — 20A TR/WR Duplex Receptacle
How to Wire a 15A WR TRReceptacle (Standard 15A/20A NA Market)
The plate for this device is T9602 1-Gang Duplex Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where TDT20 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Receptacle & USB wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for TDT20Issued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with rating, face type, shutter construction and terminal data.
- Certification statement — the listing recorded for the model on this page, named on the quotation.
- Plate and cover cross-reference — which opening and which cover go with this face, so the schedule and the plate order agree.
- Packing and carton marking — case pack and barcode layout, which decides a high-count bid as often as the unit price does.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
TDT20 — answered
What does the TR marking on the TDT20 actually do?
It means the internal shutters stay closed unless both slots are pressed at the same time by a plug. NEC 406.12 requires a listed TR receptacle in dwelling units, guest rooms, education and child-care facilities, dormitories, care occupancies and similar spaces — and a non-TR device with add-on plastic caps is not an equivalent to a listed TR receptacle.
Is WR enough on its own for an exterior wall?
No. The weather-resistant construction covers the device; the cover and the box are the other half of the assembly and they are separate line items. Order the cover with the same PO and check that the enclosure matches the plate and the device depth.
What certification does this model carry?
The certification recorded for this model in our product data is: UL/cUL Listed. The quotation names the devices the certification covers, and where a line item does not carry a qualification in our data we will say so rather than present it as listed.
Do the finishes match the switches and plates?
Devices, plates and switches are drawn from one palette: White, Black, Ivory, Almond, Grey, Brown, Graphite. That is what keeps a unit turn from reading as a patchwork of whites by room, and it is why the colour is confirmed with the model list rather than after production starts. Availability is confirmed per model at quote stage.
What do you need to quote a unit turn?
The device schedule by room type and floor, with quantities per line. We return the model list, the face and finish per line, the plate cross-reference for each opening and the carton count — which is usually the number that decides the bid.
Answers above are specific to TDT20; the model list, quantities and project type is what we need to quote it back in one business day.
15A Tamper-Resistant Duplex Receptacle
15A TR/WR Duplex Receptacle
15A Standard Duplex Receptacle Non-TR
15A Standard Decorator Receptacle (Non-TR)Send the list, get the package back
Model list, quantities and project type is all we need to start. The quotation comes back in one business day with the specification sheet for each line item, the listing reference it holds and the packing detail for the DC — one document, not four.
