ToggleProduct line
Wall Plates
Four 1-gang plates for the devices on this site — toggle, duplex, decorator and blank openings in three sizes and seven finishes.
4Models in this line
1-GangAll four models
3Sizes: standard, mid-size, jumbo
7Finish options

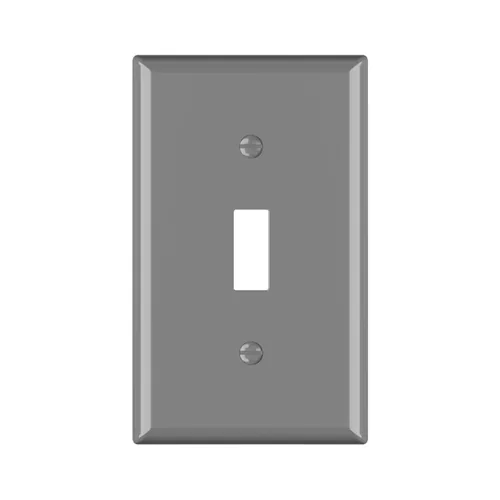

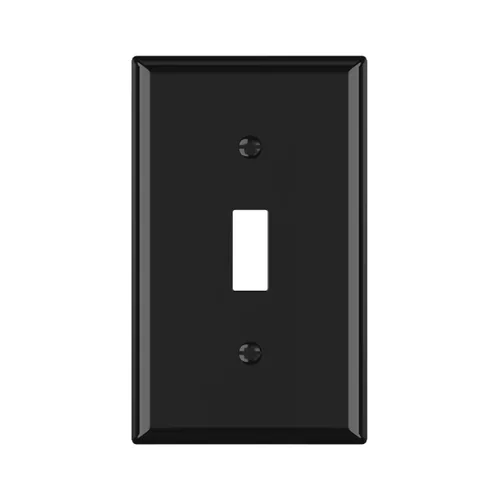

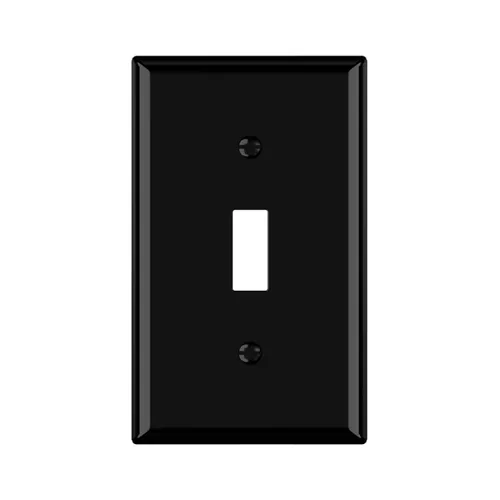

Toggle

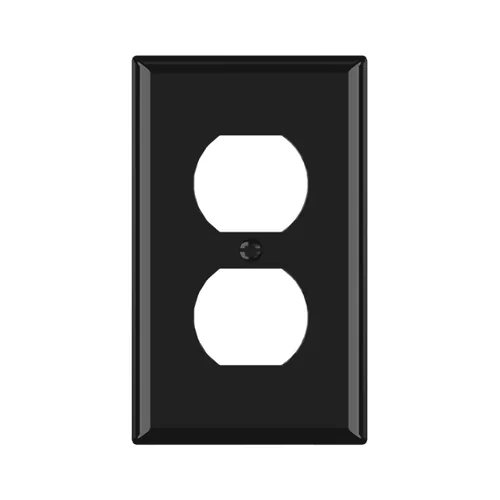

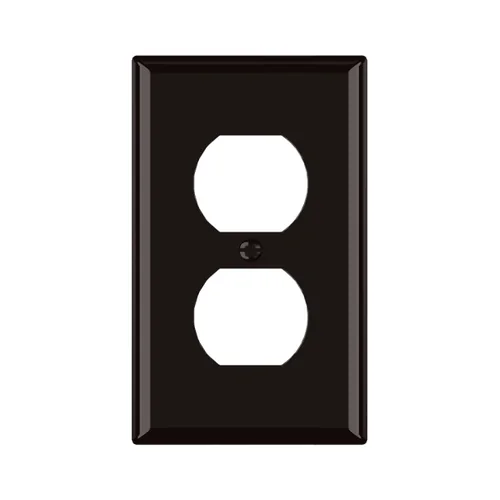

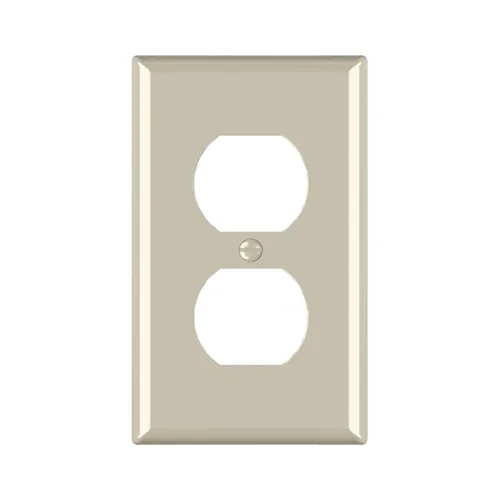

Duplex1-Gang Duplex Receptacle Wallplate
T9602 · Duplex receptacle opening with two separate outlet openings and one center screw hole
1-GangStandard · Mid · Jumbo

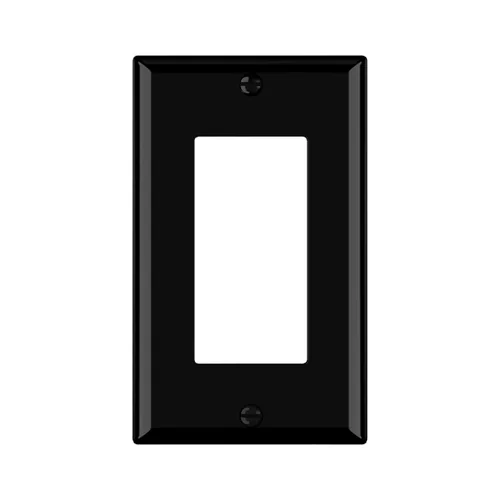

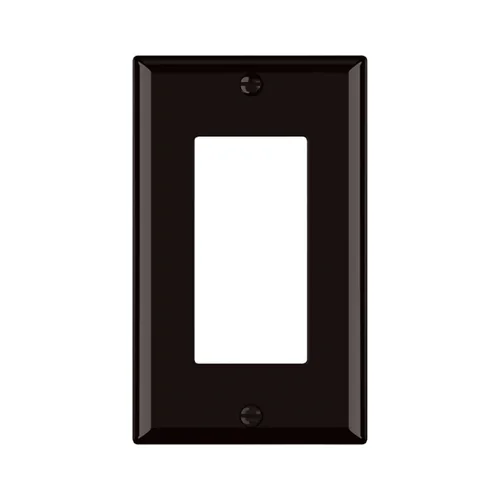

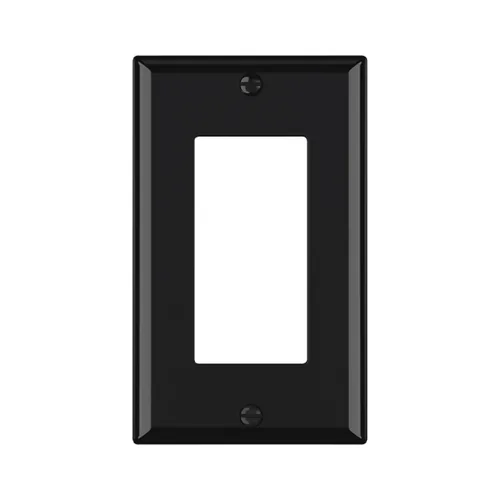

Decorator1-Gang Decorator Receptacle Wallplate
T9603 · Large rectangular decorator-style opening
1-GangStandard · Mid · Jumbo

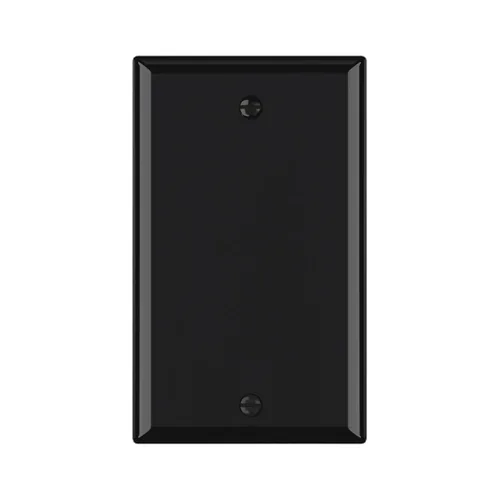

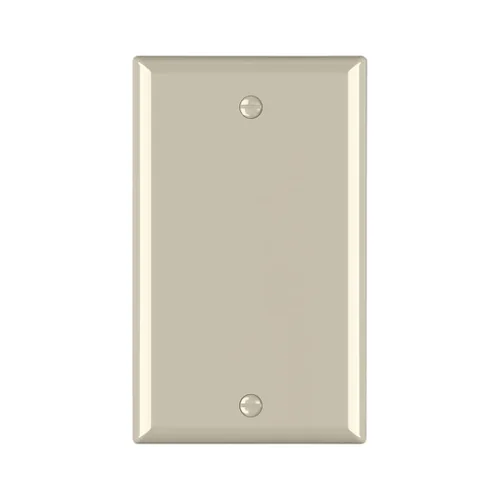

BlankWhat this line covers
The plate is the last line on the order and the first one to go wrong
A wall plate is not a universal cover. Each of the four models here fits one family of device: T9601 takes a traditional toggle switch, T9602 takes a duplex receptacle with a centre screw, T9603 is the large rectangular opening used by GFCI receptacles, USB outlets, decorator receptacles and rocker switches, and T9607 is blank for an abandoned or reserved box.
All four are 1-gang, thermoplastic with a smooth face, screw-mounted, and published in standard, mid-size and jumbo sizes. That size range matters more than it looks: a mid-size or jumbo plate is what covers the drywall damage around an existing opening during a unit turn, and it is usually the reason a plate is being replaced at all.
We do not claim a listing we do not hold. Our plate line is not published as UL 514D listed. If your submittal needs that listing for the plates, tell us before we quote — we will confirm what we can provide rather than issue a certificate number the line does not carry.
| Gang | 1-gang on all four models |
|---|---|
| Opening types | Toggle (small rectangular centre slot) · duplex (two outlets, centre screw) · decorator (large rectangular) · blank |
| Available sizes | Standard, mid-size, jumbo |
| Material | Thermoplastic — the source data also asks whether the grade is unbreakable polycarbonate, please confirm if that matters to your specification |
| Finish | Smooth face |
| Mounting | Screw-on mounting; screw size and whether screws are included are confirmed at quote stage |
| Colour range | White, black, ivory, almond, grey, brown, graphite |
| Listing | Not published as UL 514D listed — confirm before quoting a submittal that names the standard |
Selection guide
Match the opening to the device, then pick the size
Three of the four models exist because a device has an opening only one of them fits. Read the device list first, then the room, then the size.
| What the device is | What to put on the PO | Why buyers get this wrong |
|---|---|---|
| A traditional toggle switch (TM-1, TM-2, TM-3) | T9601 — standard toggle opening | Rocker and decorator devices will not fit this opening, and a toggle will not fit theirs. |
| A duplex receptacle (TDT15, TDTW15, TMDR20) | T9602 — duplex opening with centre screw | The centre-screw mounting is what distinguishes this from a decorator plate. They are not interchangeable. |
| A GFCI, USB outlet or decorator device | T9603 — large rectangular decorator opening | Buyers assume the decorator plate is only for switches and order a duplex plate for a GFCI. |

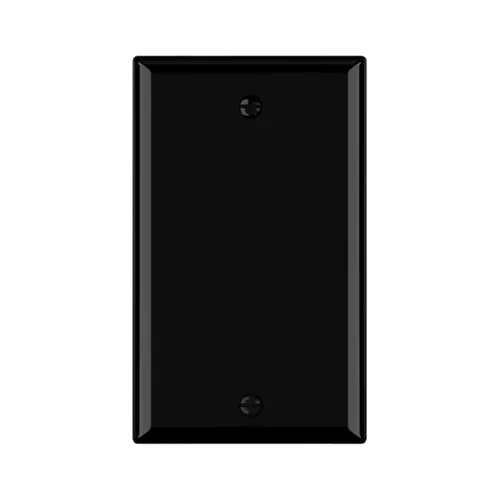

| An abandoned, reserved or future-use box | T9607 — blank, no opening | A blank is a safety closure, not a decorative cover. It is specified when a box must stay accessible. |
| A unit turn with patched drywall | The same opening type in mid-size or jumbo | Standard size is ordered by default and then does not cover the repair. Size is the second decision, not the first. |
Three things to confirm before the plate order
- The plate is device-specific. Toggle, duplex and decorator openings are not interchangeable — the published data for each model lists what it is compatible with and what it is not. Check the device list against the plate list, not against the room name.
- The size is usually the reason for the order. Standard, mid-size and jumbo all ship in every finish; the size is what covers an existing opening during a turn. Confirm which size the site actually needs before it becomes a second delivery.
- The material grade is still open in our source data. Whether the thermoplastic is an unbreakable polycarbonate grade is flagged for confirmation. If your specification names a material grade, ask us before the order rather than after the submittal.
Applications
Where these models are specified
Plates are bought in the same breath as the devices they cover. These are the settings where the four opening types do the work.
Unit turns & multifamilyDevice replacements across a floor, where the plate size is what covers the opening already in the drywall.1-gang · mid-sizeHospitality & guest roomsColour-matched plates for the decorator faces used in guest rooms, ordered with the device.Decorator openingOffices & commercial fit-outHigh-count plate orders against a device schedule, with the opening type set per room.Toggle · duplexKitchen & food serviceDecorator plates over GFCI protection where the device is a larger face than the plate assumes.Decorator openingHealthcare & care roomsClosure of abandoned and reserved boxes during refit, where the blank plate is a required line.Blank plateContractor & service stockThe three device-opening plates in the sizes a service call actually needs, with blanks as depth.Toggle · duplex · decorator
Material & documents
What we can state, and what we will confirm
The plate line is the one place on this site where we deliberately understate rather than overstate. There is no listing claim on these four models, and the material grade is still flagged for confirmation in our source data — so a submittal that names UL 514D or an unbreakable grade goes to a human before it goes to a certificate.
- Opening-type cross-reference — which plate fits which device family, published per model so the device order and the plate order can be checked against each other.
- Size and dimension data for standard, mid-size and jumbo, so the specification and the site agree on what the opening needs.
- Material statement — thermoplastic with a smooth face, with the polycarbonate question flagged as open rather than answered.
- Mounting detail — screw-on mounting, with screw size and inclusion confirmed per order.
- Packing and carton marking detail — plate orders are high count; case pack and barcode layout are issued with the quotation.
No listing is claimed for this line. If your submittal requires a specific plate standard, say so before we quote and we will confirm what the model actually holds.
For device + plate orders
Send the device schedule and the room types. We will return the plate list by opening type and size, matched to the devices on the same order, with the count and the carton detail — one line per room type.
Send a device schedule →Buyer questions
The four questions that decide this line
Reading a plate schedule backwardsHow to turn a device list into a plate order without a second delivery.Standard, mid-size and jumboWhen a larger plate is the fix for an existing opening, and when it is not.Keeping colour consistent across a unit turnHow to lock devices and plates to one palette before production starts.How to write an RFQ we can quote in one passThe eight fields that decide whether your first quotation is usable.
Before the first order
Procurement questions we get asked most
Which plate fits a GFCI or a USB outlet?
The decorator model, T9603. Its opening is the large rectangle used by GFCI receptacles, USB outlets, decorator receptacles and rocker switches. The duplex plate has two separate openings and will not fit those devices.
Is the plate UL listed?
We do not claim a listing for this line. If your submittal names a plate standard such as UL 514D, tell us before we quote and we will confirm what the model holds rather than issue a number the line does not carry.
What are the size options, and why does size matter?
Every model is published in standard, mid-size and jumbo. Size matters when a plate is replacing one on an existing opening — the larger sizes cover the drywall and the paint line around the old plate, which is usually the real reason a unit turn needs plates at all.
Does the plate come with screws?
Mounting is screw-on; screw size and whether screws are included per model are confirmed at quote stage, so ask on the PO rather than assuming.
Can the four plates be mixed in one carton?
They are separate line items with separate openings, so they are packed and labelled per SKU. A mixed plate order can share the pallet and the carton marking of the device order it ships with, which is normally what the DC wants.
What is the lead time from PO to loading?
Production runs 25–35 days depending on the mix and the colour confirmation, and samples are around five working days. Colour confirmation and packaging artwork approval are the two variables that move the date.
Can’t decide from photos
Put them next to each other
Tick any models in the comparison tool and only the differences get highlighted — opening type, gang, available sizes, material and finish. Then send the shortlist as one RFQ.
Request a quote
Send the list, get the package back
Model list, quantities and project type is all we need to start. The quotation comes back in one business day with the specification sheet for each line item, the listing reference it holds and the packing detail for the DC — one document, not four.
