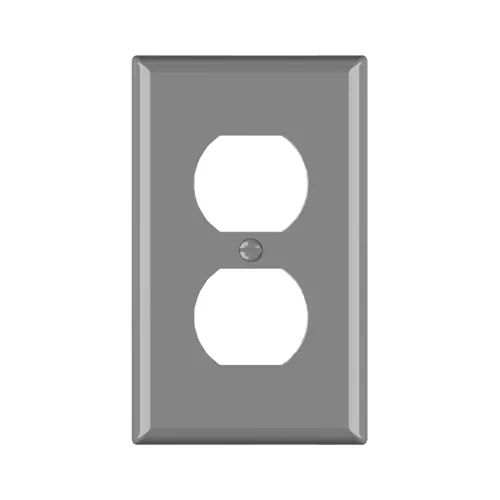

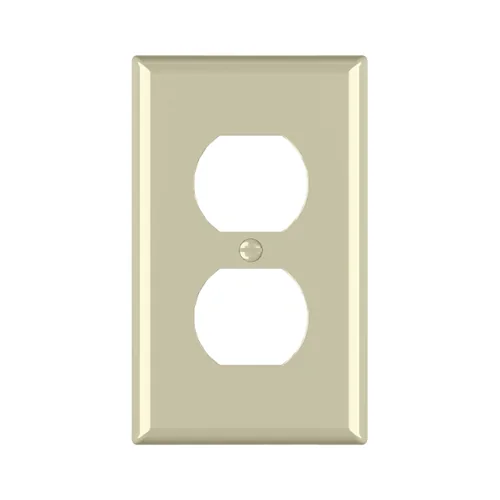

1-Gang Duplex Receptacle Wallplate
1-Gang duplex receptacle opening with two separate outlet openings and one center screw hole.
Part of the 1-gang plate line — toggle, duplex, decorator and blank openings in standard, mid-size and jumbo, from the same palette as the devices.
| Opening Type | Duplex receptacle opening with two separate outlet openings and one center screw hole |
|---|---|
| Gang | 1-Gang |
| Product Code | T9602 |
| Available Sizes | Standard, Mid-Size, Jumbo |
| Compatible Devices | Traditional 15A and 20A duplex receptacles with center screw mounting |
| Not Compatible With | GFCI receptacles, USB outlets, decorator receptacles, rocker switches, toggle switches, blank box covers, or multi-gang devices |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What T9602 is, and what you get
1-Gang duplex receptacle opening with two separate outlet openings and one center screw hole.
Part of the 1-gang plate line — toggle, duplex, decorator and blank openings in standard, mid-size and jumbo, from the same palette as the devices.
- Check the device opening, not the room name — the four openings are not interchangeable.
- Size is the second decision: mid-size and jumbo are what cover an opening that already exists.
- No listing is claimed on this line — confirm any UL 514D requirement before we quote.
- 1-gang duplex receptacle wallplate for standard two-opening outlet faces
- Center-screw mounting design for traditional 15A and 20A duplex receptacles
- Available in Standard, Mid-Size, and Jumbo sizes for different wall coverage conditions
- Not for GFCI, USB, decorator, rocker, toggle, blank, or multi-gang applications
- Seven color options support outlet-and-plate matching across residential, apartment, and commercial projects
Every field we hold for T9602
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Country of Origin | China |
|---|
| Product Type | 1-gang duplex receptacle wallplate |
|---|---|
| Material | Thermoplastic |
| Finish | Smooth face |
| Color Options | White, Black, Ivory, Almond, Grey, Brown, Graphite |
| Opening Type | Duplex receptacle opening with two separate outlet openings and one center screw hole |
|---|---|
| Gang | 1-Gang |
| Available Sizes | Standard, Mid-Size, Jumbo |
| Size Selection | Standard for clean outlet openings, Mid-Size for minor wall marks, Jumbo for wider retrofit coverage |
| Mounting | Single center screw mounting [Need confirmation: screw size and whether screw is included]to confirm |
| Mounting Screw Included | Yes |
| Compatible Devices | Traditional 15A and 20A duplex receptacles with center screw mounting |
|---|---|
| Not Compatible With | GFCI receptacles, USB outlets, decorator receptacles, rocker switches, toggle switches, blank box covers, or multi-gang devices |
| Application Sector | Residential outlet replacement, apartment renovations, commercial MRO, new construction outlet finishing, and standard receptacle color-matching projects |
| Product Code | T9602 |
|---|---|
| Not for | GFCI outlet coverage, USB outlet coverage, decorator receptacles, blank junction box coverage, toggle switch coverage, rocker switch coverage, or multi-gang outlet groups |
| Packaging | individual bag |
| Colors | White, Black, Ivory, Almond, Grey, Brown, Graphite |
|---|---|
| Not For | GFCI outlet coverage, USB outlet coverage, decorator receptacles, blank junction box coverage, toggle switch coverage, rocker switch coverage, or multi-gang outlet groups |
Use this one, or step to another
- Specified for: Residential outlet replacement, apartment renovations, commercial MRO, new construction outlet finishing, and standard receptacle color-matching projects.
- This is the Duplex receptacle opening with two separate outlet openings and one center screw hole configuration — packed in individual bag.
- Order it in any published size: Standard, Mid-Size, Jumbo.
- If the schedule calls for the toggle opening instead — T9601 — 1-Gang Toggle Wallplate
- If the schedule calls for the decorator opening instead — T9603 — 1-Gang Decorator Receptacle Wallplate
- If the schedule calls for the blank opening instead — T9607 — 1-Gang Blank Wallplate
How to Install a 1-Gang Duplex Receptacle Wallplate
The plate for this device is T9601 toggle / T9602 duplex / T9603 decorator / T9607 blank. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where T9602 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Specification sheet for T9602Issued with the quotation, generated from the data on this pageOn request
- Opening-type cross-reference — which plate fits which device family, published per model so the device order and the plate order can be checked against each other.
- Size and dimension data for standard, mid-size and jumbo, so the specification and the site agree on the opening.
- Material statement — thermoplastic with a smooth face, with the open questions marked as open rather than answered.
- Packing and carton marking — plate orders are high count; case pack and barcode layout are issued with the quotation.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
T9602 — answered
How is this plate fitted, and does it fit a GFCI?
It mounts with a single centre screw through two separate outlet openings, which is what a traditional duplex receptacle uses. A GFCI, USB outlet or decorator receptacle is a larger face and needs the decorator opening plate instead — this one will not cover it.
When is a blank plate the right part?
When a box has to stay accessible but has no device in it — an abandoned circuit, a reserved or future-use opening, or a junction that must not be drywalled over. It is a safety closure, not a decorative cover, and the box should remain reachable after the plate is fitted.
Which size do I order — standard, mid-size or jumbo?
Standard is the default. Mid-size and jumbo exist for the case that usually starts the order in the first place: replacing a plate on an opening that already exists, where the larger plate is what covers the drywall, paint line and patch around it. Confirm the size on site before it becomes a second delivery.
Is the plate UL listed?
We do not claim a listing for this line. If your submittal names a plate standard such as UL 514D, say so before we quote and we will confirm what the model actually holds — we would rather answer that question than issue a number the line does not carry.
What is the material and how is it fixed?
Thermoplastic with a smooth face, screw-on mounting. Screw size and whether screws are included are confirmed per order, so put it on the PO rather than assuming it. Colour range for the line is White, Black, Ivory, Almond, Grey, Brown, Graphite.
Answers above are specific to T9602; the model list, quantities and project type is what we need to quote it back in one business day.
