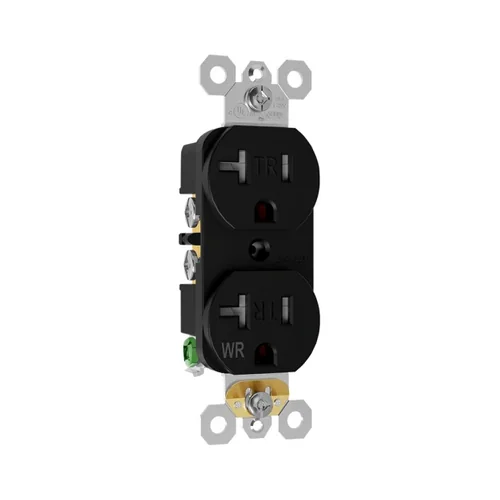

Click to enlarge7 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.
20A TR/WR Duplex Receptacle
20A 125V receptacle with a NEMA 5-20R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. The body carries the weather-resistant construction for damp and wet locations — the cover is a separate line item.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
| Amperage | 20A |
|---|---|
| Voltage | 125V |
| NEMA | 5-20R |
| USB Rating | None |
| GFCI Type | Not GFCI |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What TDTW20 is, and what you get
20A 125V receptacle with a NEMA 5-20R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. The body carries the weather-resistant construction for damp and wet locations — the cover is a separate line item.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
- Match the plate opening to the face — duplex and decorator plates are not interchangeable.
- 20A is a branch-circuit decision, not an upgrade: confirm the circuit, not the look.
- TR/WR models still need the correct cover on the same order for a damp-location install.
- 20A 125V NEMA 5-20R duplex receptacle with both tamper-resistant and weather-resistant construction
- T-slot face pattern supports true 20A outlet identification for heavier outdoor and utility loads
- Designed for damp and wet-location installations when used with the required protection method and enclosure
- Standard non-GFCI device format makes it suitable for downstream wiring after a 20A GFCI device or breaker
- Built for commercial exterior walls, food truck drops, park facilities, wash-down areas, and severe damp environments
- Available in seven finish options for large-scale exterior retrofit and contractor pack sourcing
Every field we hold for TDTW20
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL/cUL Listed |
|---|---|
| Standards & Certifications | UL Listed / UL 498 |
| Own US Patents | Yes |
| Country of Origin | China |
| GFCI Type | Not GFCI |
|---|---|
| Voltage | 125V AC |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | None |
| USB A | None |
| USB C | None |
| Pole | 2-pole, 3-wire grounding |
| Number of Receptacles | Duplex (2) |
| Trip Level | Not applicable |
| Safety Function | Tamper-resistant shutter protection with weather-resistant construction |
| Tamper Resistant | Yes |
| Weather Resistant | Yes |
| Color | White, Black, Ivory, Almond, Grey, Brown, Graphite |
|---|---|
| Finish | Standard smooth finish |
| Features | Standard duplex format, grounding type, NEMA 5-20R T-slot, TR shutters, WR construction, non-GFCI |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Wiring Method | Back Wire and Side Wire |
|---|---|
| Grounding | Yes |
| Terminal | Side and Back Wire |
| Application Sector | Commercial outdoor circuits, exterior maintenance points, food truck drops, wash-down areas, municipal facilities, and severe damp industrial locations |
|---|
| Product Code | TDTW20 |
|---|---|
| Wall Plate Included | Yes |
| NEMA Configuration | 5-20R |
|---|---|
| GFCI Protection | No |
| Application | Outdoor, Damp, and Wet Locations |
Use this one, or step to another
- Contractors building 20A outdoor branch-circuit runs for commercial plazas, dining patios, stadium concourses, parks, and event infrastructure
- Buyers sourcing downstream 5-20R receptacles after one upstream 20A GFCI device
- Facility teams replacing failed outdoor 20A outlets in wet, corrosive, or wash-down environments
- Distributors serving municipal, hospitality, landscape, and exterior maintenance contractors that need a TR/WR heavy-duty standard receptacle
- Choose a 20A WR GFCI receptacle when the device itself must provide local GFCI protection WTST20 — 20A Weather-Resistant Self-Test GFCI Receptacle
- Choose a 15A TR/WR receptacle when the project does not need NEMA 5-20R outlet geometry TDTW15 — 15A TR/WR Duplex Receptacle
- Choose an indoor TR receptacle only when the installation is fully dry and not exposed to damp or wet conditions TDT20 — 20A Tamper-Resistant Duplex Receptacle
TDTW20 on camera
Watch on YouTube15A Tamper-Resistant Weather-Resistant Duplex Receptacle Video
How to Wire a Weather-Resistant Receptacle (Standard 15A/20A NA Market)
The plate for this device is T9602 1-Gang Duplex Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where TDTW20 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Receptacle & USB wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for TDTW20Issued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with rating, face type, shutter construction and terminal data.
- Certification statement — the listing recorded for the model on this page, named on the quotation.
- Plate and cover cross-reference — which opening and which cover go with this face, so the schedule and the plate order agree.
- Packing and carton marking — case pack and barcode layout, which decides a high-count bid as often as the unit price does.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
TDTW20 — answered
What does the TR marking on the TDTW20 actually do?
It means the internal shutters stay closed unless both slots are pressed at the same time by a plug. NEC 406.12 requires a listed TR receptacle in dwelling units, guest rooms, education and child-care facilities, dormitories, care occupancies and similar spaces — and a non-TR device with add-on plastic caps is not an equivalent to a listed TR receptacle.
Is WR enough on its own for an exterior wall?
No. The weather-resistant construction covers the device; the cover and the box are the other half of the assembly and they are separate line items. Order the cover with the same PO and check that the enclosure matches the plate and the device depth.
Can the 15A model be used instead of this 20A face?
Only if the branch circuit is 15A. The T-slot geometry of a NEMA 5-20R face exists so a 20A plug cannot be inserted into a 15A circuit — swapping the face is a circuit decision, and the two part numbers are not interchangeable on a schedule without the circuit changing with them.
What certification does this model carry?
The certification recorded for this model in our product data is: not stated in our data. The quotation names the devices the certification covers, and where a line item does not carry a qualification in our data we will say so rather than present it as listed.
Do the finishes match the switches and plates?
Devices, plates and switches are drawn from one palette: . That is what keeps a unit turn from reading as a patchwork of whites by room, and it is why the colour is confirmed with the model list rather than after production starts. Availability is confirmed per model at quote stage.
What do you need to quote a unit turn?
The device schedule by room type and floor, with quantities per line. We return the model list, the face and finish per line, the plate cross-reference for each opening and the carton count — which is usually the number that decides the bid.
Answers above are specific to TDTW20; the model list, quantities and project type is what we need to quote it back in one business day.
