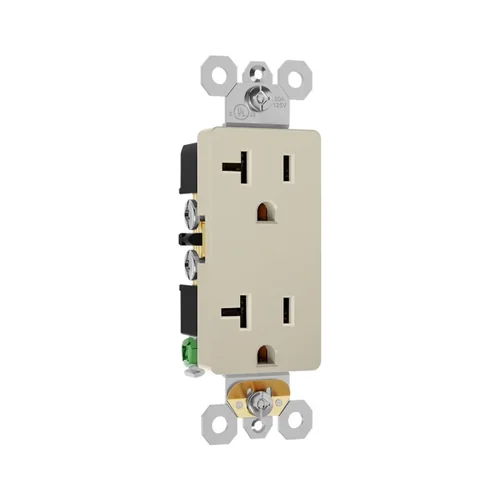

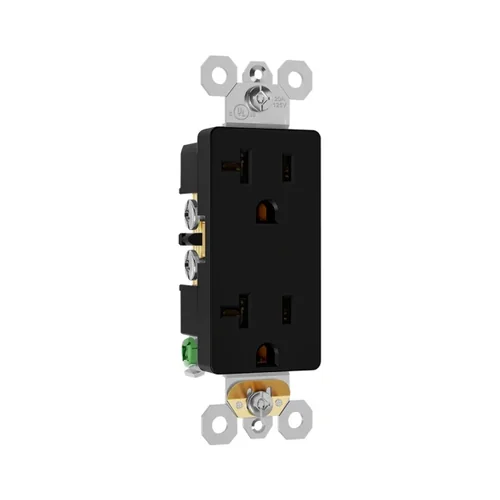

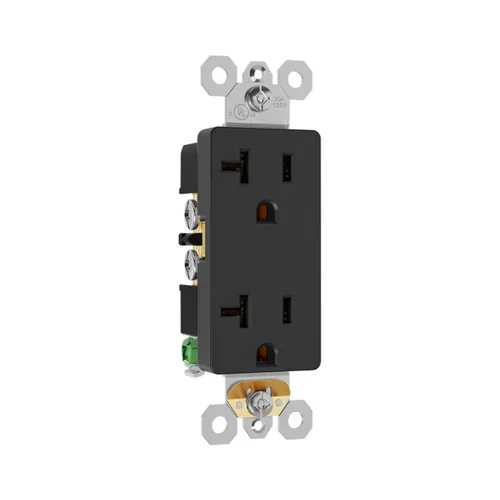

Click to enlarge7 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.
20A Standard Decorator Receptacle
20A 125V receptacle with a NEMA 5-20R face.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
| Amperage | 20A |
|---|---|
| Voltage | 125V |
| NEMA | 5-20R |
| USB Rating | None |
| GFCI Type | Not GFCI |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What TMSR20 is, and what you get
20A 125V receptacle with a NEMA 5-20R face.
Part of the duplex and decorator receptacle line — UL/cUL listed models in 15A and 20A, drawn from one seven-finish palette across devices and plates.
- Match the plate opening to the face — duplex and decorator plates are not interchangeable.
- 20A is a branch-circuit decision, not an upgrade: confirm the circuit, not the look.
- TR/WR models still need the correct cover on the same order for a damp-location install.
- 20A 125V NEMA 5-20R decorator receptacle with rectangular flat-face profile
- T-slot configuration supports true 20A receptacle identification for dedicated commercial equipment
- Non-TR design for restricted commercial locations where tamper-resistant shutters are not required
- Modern-style face matches rocker switches, dimmers, and standard rectangular wallplates
- Back wire and side wire termination support routine contractor installation workflows
Every field we hold for TMSR20
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL/cUL Listed |
|---|---|
| Standards & Certifications | UL Listed / UL 498 |
| Own US Patents | Yes |
| Country of Origin | China |
| GFCI Type | Not GFCI |
|---|---|
| Voltage | 125V AC |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | None |
| USB A | None |
| USB C | None |
| Pole | 2-pole, 3-wire grounding |
| Number of Receptacles | Duplex (2) |
| Trip Level | Not applicable |
| Safety Function | Standard grounding receptacle |
| Tamper Resistant | No |
| Weather Resistant | No |
| Color | White, Black, Ivory, Almond, Grey, Brown, Graphite |
|---|---|
| Finish | Standard smooth finish |
| Features | Rectangular decorator profile, NEMA 5-20R T-slot, grounding type, non-TR, non-WR |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Wiring Method | Back Wire and Side Wire |
|---|---|
| Grounding | Yes |
| Terminal | Side and Back Wire |
| Application Sector | Commercial equipment rooms, copy rooms, server rooms, AV spaces, executive offices, and restricted facility interiors |
|---|
| Product Code | TMSR20 |
|---|---|
| Wall Plate Included | Yes |
| NEMA Configuration | 5-20R |
|---|---|
| GFCI Protection | No |
| Application | Indoor Dry Commercial Locations |
Use this one, or step to another
- Contractors wiring dedicated 20A receptacle points for commercial copiers, AV racks, and equipment rooms
- Facility teams replacing existing rectangular 5-20R outlets in restricted-access business spaces
- Distributors carrying modern-style non-TR receptacles for commercial retrofit and office upgrade projects
- Project buyers matching 20A receptacles with rocker switches and screwless wallplates across modern interiors
- Choose a 20A TR decorator receptacle for public-facing, residential, hospitality, education, care, or child-accessible locations where TR protection is required
- Choose a 15A decorator receptacle when the project uses NEMA 5-15R outlet geometry rather than a 5-20R T-slot
- Choose a WR or GFCI model when weather exposure or ground-fault protection is required by the installation
How to Wire a 20A Standard Decorator Receptacle
The plate for this device is T9603 1-Gang Decorator Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where TMSR20 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Receptacle & USB wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for TMSR20Issued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with rating, face type, shutter construction and terminal data.
- Certification statement — the listing recorded for the model on this page, named on the quotation.
- Plate and cover cross-reference — which opening and which cover go with this face, so the schedule and the plate order agree.
- Packing and carton marking — case pack and barcode layout, which decides a high-count bid as often as the unit price does.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
TMSR20 — answered
TR is not called for on this job — is the standard model the right order?
It is a legitimate product for locations outside NEC 406.12, and this model is published as non-TR rather than presented as a substitute. Send us the project type with the order: if the application is residential, hospitality or public-access we will come back and confirm before quoting rather than ship a device that fails at inspection.
Can the 15A model be used instead of this 20A face?
Only if the branch circuit is 15A. The T-slot geometry of a NEMA 5-20R face exists so a 20A plug cannot be inserted into a 15A circuit — swapping the face is a circuit decision, and the two part numbers are not interchangeable on a schedule without the circuit changing with them.
What certification does this model carry?
The certification recorded for this model in our product data is: not stated in our data. The quotation names the devices the certification covers, and where a line item does not carry a qualification in our data we will say so rather than present it as listed.
Do the finishes match the switches and plates?
Devices, plates and switches are drawn from one palette: . That is what keeps a unit turn from reading as a patchwork of whites by room, and it is why the colour is confirmed with the model list rather than after production starts. Availability is confirmed per model at quote stage.
What do you need to quote a unit turn?
The device schedule by room type and floor, with quantities per line. We return the model list, the face and finish per line, the plate cross-reference for each opening and the carton count — which is usually the number that decides the bid.
Answers above are specific to TMSR20; the model list, quantities and project type is what we need to quote it back in one business day.
