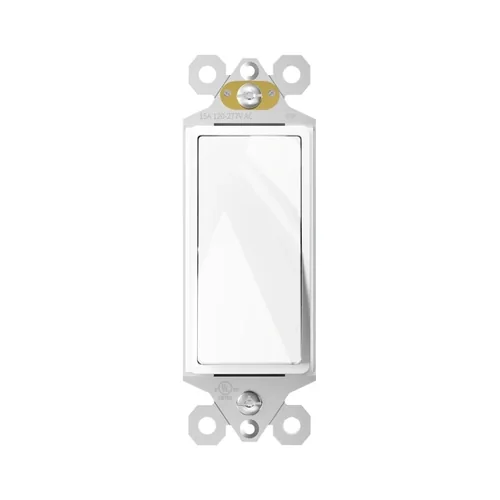

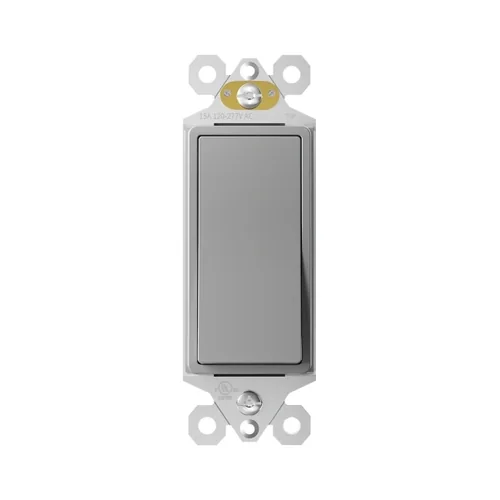

Click to enlarge7 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.
15A 120/277V 4-Way Rocker Switch
15A 120/277V AC 4-way rocker switch.
Part of the UL 20 switch line — toggle and decorator rocker faces, single pole through 4-way, plus dual and triple rocker combination models for a single-gang opening.
| Amperage | 15A |
|---|---|
| Voltage | 120/277V AC |
| Switch Type | 4-Way Rocker Switch |
| Wiring Method | Side wire, back wire, push-in |
| Wall Plate Included | No |
| Certified Safety | UL/cUL listing |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What TM-6 is, and what you get
15A 120/277V AC 4-way rocker switch.
Part of the UL 20 switch line — toggle and decorator rocker faces, single pole through 4-way, plus dual and triple rocker combination models for a single-gang opening.
- Count the control locations first: a 3-way circuit needs two 3-way devices, and a 4-way sits between them.
- Wall plates are not included in this line — a decorator opening is needed for the rocker faces.
- Mechanical switching only: no dimming, timer or smart control in this line.
- 15A 120/277V 4-way rocker switch for lighting circuits controlled from three or more wall locations
- Intermediate switch only; must be installed between two 3-way switches in the same circuit
- UL/cUL listing with UL file number E327438 and UL 20 coverage for product verification
- Four traveler-terminal logic with no common terminal and no fixed ON/OFF paddle marking
- Side wire, back wire, push-in wiring, self-grounding clip, thermoplastic body, and seven color options
Every field we hold for TM-6
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL/cUL listing |
|---|---|
| UL File Number | E327438 |
| Applicable Standard | UL 20 |
| Country of Origin | China |
| Voltage | 120/277V AC |
|---|---|
| Amperage | 15A |
| Pole | 4-way |
| Required Circuit Position | Between two 3-way switches in a multi-location switch circuit |
| Product Type | 4-way rocker switch |
|---|---|
| Switch Style | Rocker / paddle actuator |
| Color | White, Black, Ivory, Almond, Grey, Brown, Graphite |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Switch Function | Intermediate switch used between two 3-way switches for control from three or more wall locations |
|---|---|
| Face Marking | No fixed ON/OFF marking, as expected for multi-location mechanical switch operation |
| Wallplate Compatibility | Requires decorator-style rectangular wallplate opening |
| Wiring Method | Side wire, back wire, push-in |
| Terminal Layout | Four traveler terminals and grounding connection; no common terminal |
| Grounding | Self-grounding clip: Yes |
| Neutral Required | No neutral termination for a standard mechanical 4-way rocker switch unless product instructions or another device type requires it |
| Application Sector | Commercial corridors, hotel stairways, large rooms, multi-entry spaces, office lighting networks, custom homes, and multi-location retrofit projects |
|---|
| Product Code | TM-6 |
|---|---|
| Wall Plate Included | No |
| Packaging | Individual box |
| Not for | Standalone switching, two-location switching without a 4-way position, single pole replacement, dimming control, smart control, timer control, or wet-location applications unless a different listed device is selected |
| Switch Type | 4-Way Rocker Switch |
|---|---|
| Control Locations | Three or more locations when used with two 3-way switches |
| Material | Thermoplastic |
| Colors | White, Black, Ivory, Almond, Grey, Brown, Graphite |
| Not For | Standalone switching, two-location switching without a 4-way position, single pole replacement, dimming control, smart control, timer control, or wet-location applications unless a different listed device is selected |
Use this one, or step to another
- Specified for: Commercial corridors, hotel stairways, large rooms, multi-entry spaces, office lighting networks, custom homes, and multi-location retrofit projects.
- This is the 4-Way Rocker Switch configuration — self-grounding clip, packed in individual box.
- Matches decorator-style rectangular wallplate opening.
- If the schedule calls for the toggle face with single pole control instead — TM-1 — 15A Single Pole Toggle Switch
- If the schedule calls for the toggle face with 3-way control instead — TM-2 — 15A 125V 3-Way Toggle Switch
- If the schedule calls for the toggle face instead — TM-3 — 15A 125V 4-Way Toggle Switch
How to Wire a Standard 4-Way Rocker Switch
The plate for this device is T9603 1-Gang Decorator Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where TM-6 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Single pole switch wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for TM-6Issued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with control layout, rating, wiring method and terminal layout.
- Terminal layout detail for the multi-location models — common, traveller and ground terminals, which is where a wiring error is caught or missed.
- Plate cross-reference — the correct opening and gang configuration for each face, since plates are not included in this line.
- Packing and carton marking — individual box pack, carton dimensions and barcode layout for DC receiving.
Packaging as published: Individual box · country of origin: China
TM-6 — answered
Where does this 4-way switch go in the circuit?
Between two 3-way switches. It has four traveller terminals and no common, so it cannot be used on its own or as a replacement for a single pole device — each additional location beyond the second needs one 4-way in the middle of the run.
Which wall plate does this rocker face need?
A decorator-style rectangular opening — T9603 1-Gang Decorator Receptacle Wallplate. It is not the same plate as a toggle switch, and on this line the plate is a separate line item rather than something included with the device.
Is the wall plate included with the switch?
No. Every model in this switch line is published without a plate, so the plate is ordered separately: decorator opening for the rocker faces, standard toggle opening for the toggle faces, and the matching gang configuration for the combination switches.
Can these switches dim, schedule or connect to an app?
No. They are mechanical switches, and dimming, smart control, timer control and wet-location applications are excluded from the published application data for this line. Those are different listed devices — tell us the load and we will point you at what actually does it rather than stretch this line over it.
What do you need to quote a switching schedule?
The plan with the control locations marked, the colour and the plate type per room. We return the switch list by control layout, the plate cross-reference for each face, and the count — including the pairs a 3-way circuit actually needs.
Answers above are specific to TM-6; the model list, quantities and project type is what we need to quote it back in one business day.
