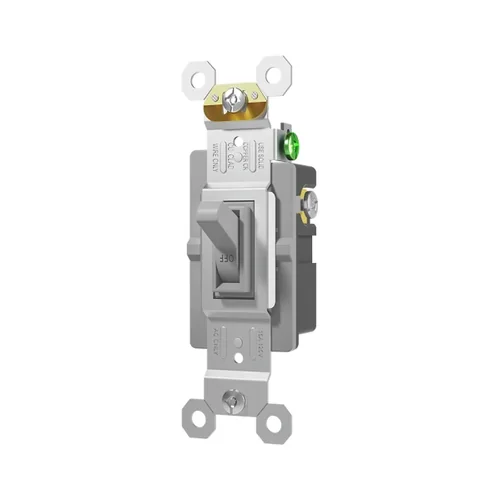

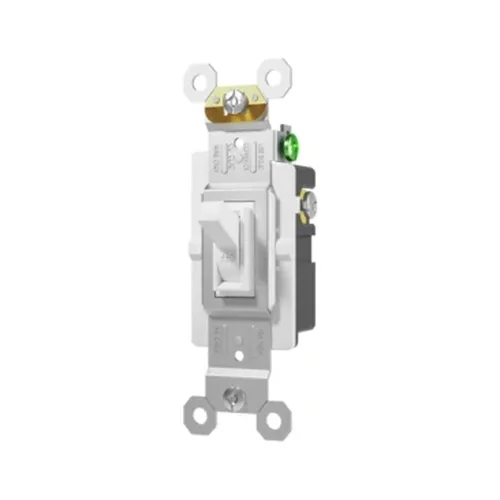

Click to enlarge7 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.
15A 125V 4-Way Toggle Switch
15A 125V AC 4-way toggle switch.
Part of the UL 20 switch line — toggle and decorator rocker faces, single pole through 4-way, plus dual and triple rocker combination models for a single-gang opening.
| Amperage | 15A |
|---|---|
| Voltage | 125V AC |
| Switch Type | 4-Way Toggle Switch |
| Wiring Method | Side wire, back wire, push-in |
| Wall Plate Included | No |
| Certified Safety | UL/cUL listing |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What TM-3 is, and what you get
15A 125V AC 4-way toggle switch.
Part of the UL 20 switch line — toggle and decorator rocker faces, single pole through 4-way, plus dual and triple rocker combination models for a single-gang opening.
- Count the control locations first: a 3-way circuit needs two 3-way devices, and a 4-way sits between them.
- Wall plates are not included in this line — a decorator opening is needed for the rocker faces.
- Mechanical switching only: no dimming, timer or smart control in this line.
- 15A 125V 4-way toggle switch for lighting control from three or more wall locations
- UL/cUL listing with UL file number E327438 and UL 20 coverage for switch product verification
- Used between two 3-way switches as the intermediate device in a multi-location circuit
- Side wire, back wire, and push-in wiring options support common contractor installation preferences
- Self-grounding clip, thermoplastic body, individual box packaging, and seven color options for matched project orders
Every field we hold for TM-3
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL/cUL listing |
|---|---|
| UL File Number | E327438 |
| Applicable Standard | UL 20 |
| Country of Origin | China |
| Voltage | 125V AC |
|---|---|
| Amperage | 15A |
| Pole | 4-way |
| Required Circuit Position | Installed between two 3-way switches in a multi-location switch circuit |
| Product Type | 4-way toggle switch |
|---|---|
| Switch Style | Traditional toggle actuator |
| Color | White, Black, Ivory, Almond, Grey, Brown, Graphite |
| Finish | Standard smooth thermoplastic finish |
| Features | 15A 125V 4-way control, intermediate switch function, no common terminal, self-grounding clip, seven color options, individual box packaging |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Switch Function | Extends one light or one load to three or more control locations when installed between two 3-way switches |
|---|---|
| Face Marking | No ON/OFF marking, as expected for 4-way mechanical switch operation |
| Wiring Method | Side wire, back wire, push-in |
| Terminal Layout | Four traveler terminals and grounding connection; no common terminal |
| Grounding | Self-grounding clip: Yes |
| Neutral Required | No neutral termination for a standard mechanical 4-way switch unless product instructions or another device type requires it |
| Application Sector | Multi-story stairways, long corridors, large rooms with multiple entrances, custom homes, property retrofits, and light commercial replacement projects |
|---|
| Product Code | TM-3 |
|---|---|
| Wall Plate Included | No |
| Packaging | Individual box |
| Not for | Single-location switching, two-location switching without a 4-way position, dimming control, smart control, timer control, or wet-location applications unless a different listed device is selected |
| Switch Type | 4-Way Toggle Switch |
|---|---|
| Control Locations | Three or more locations when used with two 3-way switches |
| Material | Thermoplastic |
| Colors | White, Black, Ivory, Almond, Grey, Brown, Graphite |
| Not For | Single-location switching, two-location switching without a 4-way position, dimming control, smart control, timer control, or wet-location applications unless a different listed device is selected |
Use this one, or step to another
- Contractors wiring multi-story stairways, long corridors, or large rooms with more than two switch points
- Property teams replacing 4-way switches in existing multi-location lighting circuits
- Distributors stocking matching single pole, 3-way, and 4-way toggle switches in seven colors
- Project buyers who need a 15A 125V UL/cUL listed 4-way switch with side wire, back wire, and push-in wiring options
- Choose 15A Single Pole Toggle Switch when the light is controlled from only one wall location. TM-1 — 15A Single Pole Toggle Switch
- Choose 15A 3-Way Toggle Switches when the light is controlled from exactly two locations. TM-2 — 15A 125V 3-Way Toggle Switch
- Choose matching wallplates at the same time if the order needs a finished device-and-cover set across the same color schedule.
- For broader sourcing risk, review our UL/cUL certification and electrical sourcing risk guide before placing repeated switch orders.
How to Wire a Standard 4-Way Toggle Switch
The plate for this device is T9601 1-Gang Toggle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where TM-3 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Single pole switch wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for TM-3Issued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with control layout, rating, wiring method and terminal layout.
- Terminal layout detail for the multi-location models — common, traveller and ground terminals, which is where a wiring error is caught or missed.
- Plate cross-reference — the correct opening and gang configuration for each face, since plates are not included in this line.
- Packing and carton marking — individual box pack, carton dimensions and barcode layout for DC receiving.
Packaging as published: Individual box · country of origin: China
TM-3 — answered
Where does this 4-way switch go in the circuit?
Between two 3-way switches. It has four traveller terminals and no common, so it cannot be used on its own or as a replacement for a single pole device — each additional location beyond the second needs one 4-way in the middle of the run.
Toggle or decorator rocker for this application?
Both exist in this line on the same 15A platform, so the choice is a plate and interior-standard decision rather than an electrical one. Toggle matches the traditional opening and legacy stock; the rocker face is what a modern interior package usually specifies, and it takes the decorator-style rectangular plate.
Is the wall plate included with the switch?
No. Every model in this switch line is published without a plate, so the plate is ordered separately: decorator opening for the rocker faces, standard toggle opening for the toggle faces, and the matching gang configuration for the combination switches.
Can these switches dim, schedule or connect to an app?
No. They are mechanical switches, and dimming, smart control, timer control and wet-location applications are excluded from the published application data for this line. Those are different listed devices — tell us the load and we will point you at what actually does it rather than stretch this line over it.
What do you need to quote a switching schedule?
The plan with the control locations marked, the colour and the plate type per room. We return the switch list by control layout, the plate cross-reference for each face, and the count — including the pairs a 3-way circuit actually needs.
Answers above are specific to TM-3; the model list, quantities and project type is what we need to quote it back in one business day.
15A Single Pole Toggle Switch
15A 125V 3-Way Toggle Switch
15A 120/277V Single Pole Rocker Switch
15A 120/277V 3-Way Rocker SwitchSend the list, get the package back
Model list, quantities and project type is all we need to start. The quotation comes back in one business day with the specification sheet for each line item, the listing reference it holds and the packing detail for the DC — one document, not four.
