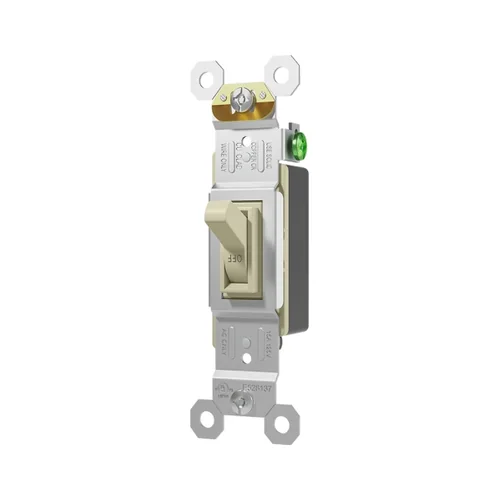

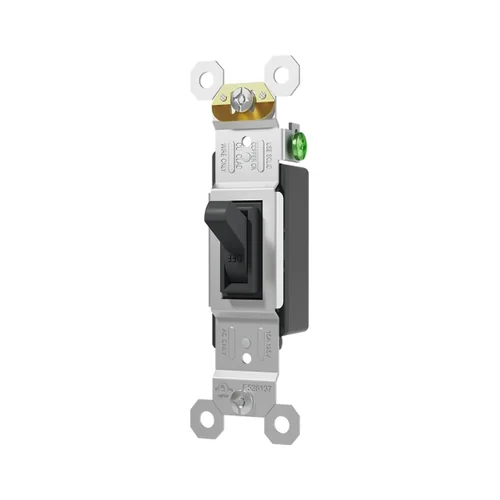

15A Single Pole Toggle Switch
15A 125V AC single pole toggle switch.
Part of the UL 20 switch line — toggle and decorator rocker faces, single pole through 4-way, plus dual and triple rocker combination models for a single-gang opening.
| Amperage | 15A |
|---|---|
| Voltage | 125V AC |
| Switch Type | Single Pole Toggle Switch |
| Wiring Method | Side wire, back wire, push-in |
| Wall Plate Included | No |
| Certified Safety | UL/cUL listing |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What TM-1 is, and what you get
15A 125V AC single pole toggle switch.
Part of the UL 20 switch line — toggle and decorator rocker faces, single pole through 4-way, plus dual and triple rocker combination models for a single-gang opening.
- Count the control locations first: a 3-way circuit needs two 3-way devices, and a 4-way sits between them.
- Wall plates are not included in this line — a decorator opening is needed for the rocker faces.
- Mechanical switching only: no dimming, timer or smart control in this line.
- 15A 125V single pole toggle switch for basic on/off control from one wall location
- UL/cUL listing with UL file number E327438 and UL 20 coverage for switch product verification
- Traditional toggle actuator for apartment retrofits, property maintenance, and contractor replacement work
- Side wire, back wire, and push-in wiring options support common field installation preferences
- Self-grounding clip, thermoplastic body, individual box packaging, and seven color options for project matching
Every field we hold for TM-1
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL/cUL listing |
|---|---|
| UL File Number | E327438 |
| Applicable Standard | UL 20 |
| Country of Origin | China |
| Voltage | 125V AC |
|---|---|
| Amperage | 15A |
| Pole | Single pole |
| Product Type | Single pole toggle switch |
|---|---|
| Switch Style | Traditional toggle actuator |
| Color | White, Black, Ivory, Almond, Grey, Brown, Graphite |
| Finish | Standard smooth thermoplastic finish |
| Features | 15A single pole control, toggle operation, self-grounding clip, seven color options, individual box packaging |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Switch Function | On/off control for one light or one load from one location |
|---|---|
| Wiring Method | Side wire, back wire, push-in |
| Terminal Layout | Two switch terminals for incoming hot and switched-load conductor, plus grounding connection |
| Grounding | Self-grounding clip: Yes |
| Neutral Required | No neutral termination for a standard mechanical single pole switch unless product instructions or another device type requires it |
| Application Sector | Apartment retrofits, property maintenance, residential lighting circuits, basic commercial interiors, MRO replacement work, and contractor bulk projects |
|---|
| Product Code | TM-1 |
|---|---|
| Wall Plate Included | No |
| Packaging | Individual box |
| Not for | 3-way switches, 4-way switches, dimmers, smart switches, timers, or wet-location applications unless a different listed device is selected |
| Switch Type | Single Pole Toggle Switch |
|---|---|
| Control Location | One location |
| Material | Thermoplastic |
| Colors | White, Black, Ivory, Almond, Grey, Brown, Graphite |
| Not For | 3-way switches, 4-way switches, dimmers, smart switches, timers, or wet-location applications unless a different listed device is selected |
Use this one, or step to another
- Contractors replacing standard toggle switches in apartment, residential, or light commercial projects
- Property maintenance teams standardizing 15A single pole switches across multiple units
- Distributors stocking seven common switch colors for retrofit and MRO demand
- Project buyers who need a 15A 125V UL/cUL listed toggle switch with side wire, back wire, and push-in wiring options
- Choose 15A 3-Way Toggle Switch when the same light must be controlled from two locations.
- Choose a dimmer or smart switch when the project needs brightness control, scheduling, sensing, or app-based operation.
- Choose Standard Toggle Wallplates at the same time if the order needs a finished switch-and-cover combination.
- For broader sourcing checks, review our UL/cUL certification and electrical sourcing risk guide before placing repeated device orders.
How to Wire a Standard Single Pole Toggle Switch
The plate for this device is T9601 1-Gang Toggle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where TM-1 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Single pole switch wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for TM-1Issued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with control layout, rating, wiring method and terminal layout.
- Terminal layout detail for the multi-location models — common, traveller and ground terminals, which is where a wiring error is caught or missed.
- Plate cross-reference — the correct opening and gang configuration for each face, since plates are not included in this line.
- Packing and carton marking — individual box pack, carton dimensions and barcode layout for DC receiving.
Packaging as published: Individual box · country of origin: China
TM-1 — answered
Toggle or decorator rocker for this application?
Both exist in this line on the same 15A platform, so the choice is a plate and interior-standard decision rather than an electrical one. Toggle matches the traditional opening and legacy stock; the rocker face is what a modern interior package usually specifies, and it takes the decorator-style rectangular plate.
Is the wall plate included with the switch?
No. Every model in this switch line is published without a plate, so the plate is ordered separately: decorator opening for the rocker faces, standard toggle opening for the toggle faces, and the matching gang configuration for the combination switches.
Can these switches dim, schedule or connect to an app?
No. They are mechanical switches, and dimming, smart control, timer control and wet-location applications are excluded from the published application data for this line. Those are different listed devices — tell us the load and we will point you at what actually does it rather than stretch this line over it.
What do you need to quote a switching schedule?
The plan with the control locations marked, the colour and the plate type per room. We return the switch list by control layout, the plate cross-reference for each face, and the count — including the pairs a 3-way circuit actually needs.
Answers above are specific to TM-1; the model list, quantities and project type is what we need to quote it back in one business day.
