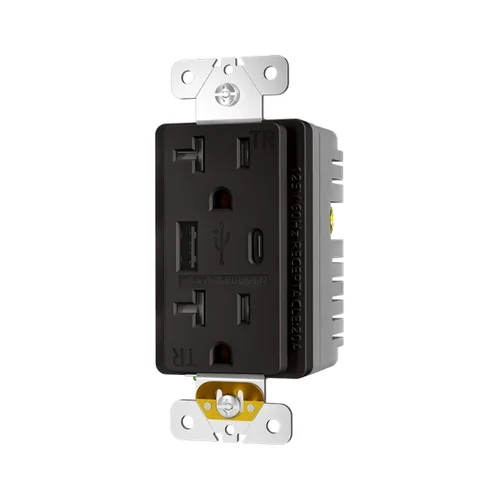

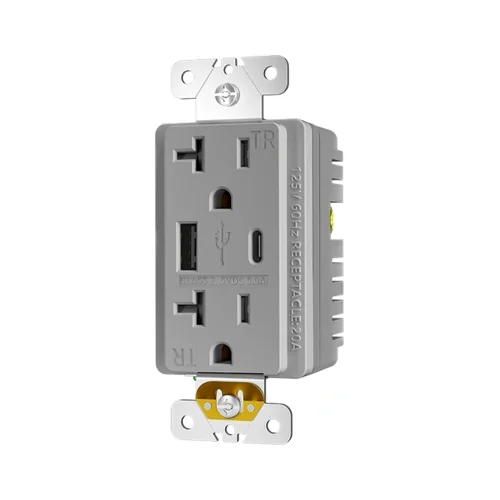

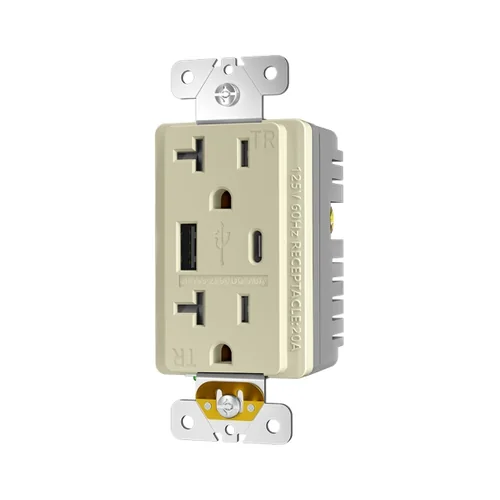

Click to enlarge8 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.
20A High Output 5.0A Combination USB Receptacle
20A 125V charging receptacle with a NEMA 5-20R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. Charging is built into the same wall box: 1 × USB-A and 1 × USB-C, up to 2.4A per port, 5V 5.0A total output.
Part of the in-wall USB charging line — 24 models from 5V 2.4A per port up to 65W USB-C Power Delivery, on 15A and 20A receptacle faces.
| Amperage | 20A |
|---|---|
| Voltage | 125V |
| NEMA | 5-20R |
| USB Rating | 5.0A, 25W Total Output |
| USB Ports | 1 × USB-A and 1 × USB-C, up to 2.4A per port, 5V 5.0A total output |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What SXUT2050C is, and what you get
20A 125V charging receptacle with a NEMA 5-20R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. Charging is built into the same wall box: 1 × USB-A and 1 × USB-C, up to 2.4A per port, 5V 5.0A total output.
Part of the in-wall USB charging line — 24 models from 5V 2.4A per port up to 65W USB-C Power Delivery, on 15A and 20A receptacle faces.
- This line is not ground-fault protected — where the code needs GFCI, order the combination models from the GFCI line.
- Shared output is not per-port output: read both figures on the specification sheet before specifying.
- Fast-charge models are deeper — confirm wall box depth before the order, not at installation.
- 20A NEMA 5-20R receptacle format for properly matched commercial branch circuits
- Hybrid charging design with one USB-A port and one USB-C port
- High-output 5V 5.0A total USB capacity for stronger simultaneous charging
- Tamper-resistant shutters support covered NEC 406.12 installation locations
- Standard indoor receptacle design — not GFCI and not weather resistant
- Wall plate included
Every field we hold for SXUT2050C
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL, cUL |
|---|---|
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Own US Patents | Yes |
| Country of Origin | China |
| GFCI Type | None |
|---|---|
| Voltage | 125V |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | 5.0A, 25W Total Output |
| USB A | Up to 2.4A |
| USB C | Up to 2.4A |
| Operating Temperature | -35C to 66C(-30F to 150F) |
| Pole | 2 |
| Wire | 3 |
| Number of Receptacles | 2 |
| Trip Level | None |
| Tamper Resistant | Yes |
| Weather Resistant | None |
| Color | White,Ivory,Almond,Black,Grey,Brown,Graphite |
|---|---|
| Finish | Satin |
| Features | High Output USB Charging, Hybrid A/C Ports, Tamper Resistant, Standard Receptacle |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Wiring Method | Back Wire and Side Wire |
|---|---|
| Grounding | Self Grounding |
| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Application Sector | Commercial, Hospitality, Corporate, Premium Public Interior |
|---|
| Product Code | SXUT2050C |
|---|---|
| Wall Plate Included | Yes |
| NEMA Configuration | 5-20R |
|---|---|
| USB Ports | 1 × USB-A and 1 × USB-C, up to 2.4A per port, 5V 5.0A total output |
| GFCI Protection | No |
| Application | Indoor Dry Commercial Locations |
Use this one, or step to another
- Corporate renovation buyers upgrading executive offices, lounges, and boardrooms
- Airport, hospitality, and facility teams modernizing premium public interiors
- Contractors specifying 20A dry-location receptacles with mixed-device charging support
- B2B distributors sourcing higher-output hybrid A/C receptacles for project supply
- Choose a 3.6A hybrid USB A/C receptacle when budget matters more than simultaneous charging performance SMUT2036C — 20A USB Type A/C Receptacle
- Choose a 20A GFCI USB model when the receptacle will be installed near sinks or other NEC-covered wet or damp areas UCWTST20 — 20A GFCI Outlet with USB-C and USB-A
- Choose a PD-oriented USB-C charging product when the project expects laptop charging rather than standard 5V USB charging SMUT20PD20 — 20A 20W PD Fast Charging USB Receptacle
SXUT2050C on camera
Watch on YouTubeUL Listed 20A&15A GFCI Receptacle with Screwless Plate | B2B Wholesale
How to Wire a USB Receptacle (Standard 15A/20A NA Market)
The plate for this device is T9603 1-Gang Decorator Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where SXUT2050C is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Receptacle & USB wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for SXUT2050CIssued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with the port layout, per-port and shared output, and the receptacle rating.
- Listing reference for the exact model — tell us which standard your submittal names and we confirm what the model holds.
- Box-fill and depth data — combination charging devices are deeper; the fit is confirmed before the order.
- Packing and carton marking — case pack and barcode layout, including mixed orders of more than one USB model.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
SXUT2050C — answered
Is the SXUT2050C a GFCI as well?
No. This is a charging receptacle, and the published data for this line does not include ground-fault protection. Where the code requires GFCI protection at the device, order the combination models from the GFCI line instead — the charging sits inside a Class A self-test body there, and one wall box holds one device either way.
What can the USB-C port on the SXUT2050C charge?
It charges whatever the user connects: phones and tablets at the low tier, and at the fast-charge tiers the devices that actually negotiate Power Delivery. The port is a standard USB-C receptacle in the wall face — no adapter, no brick on the counter, and no cable to lose behind a nightstand.
Do I need the 20A version rather than this one?
Only if the branch circuit is 20A. 15A and 20A are circuit decisions, not an upgrade: the face geometry has to match the circuit, and the device rating on the drawing is what the inspector checks. If your schedule does not distinguish them, tell us the circuit and we will quote the correct face and flag the assumption in writing.
Will it fit the wall box that is already there?
Combination charging devices are deeper than a plain receptacle, which is the one thing worth checking before the order rather than during installation. Send us the box type you are installing into and we will confirm the fit; on older or shallow boxes this is where a retrofit plan changes.
Is the AC part tamper-resistant?
Yes — the receptacle portion of every model in this line has tamper-resistant shutters, and the AC face of this device is published as TR. The shutters apply to the AC slots only; the USB ports are separate charging interfaces.
Does it ship with a wall plate, and which one?
The plate is part of the device line item, and this face takes the decorator opening — T9603 1-Gang Decorator Receptacle Wallplate. If your standard is a mid-size or jumbo plate, that is a separate line you can add to the same order so the openings and the finish match on one delivery.
Answers above are specific to SXUT2050C; the model list, quantities and project type is what we need to quote it back in one business day.
