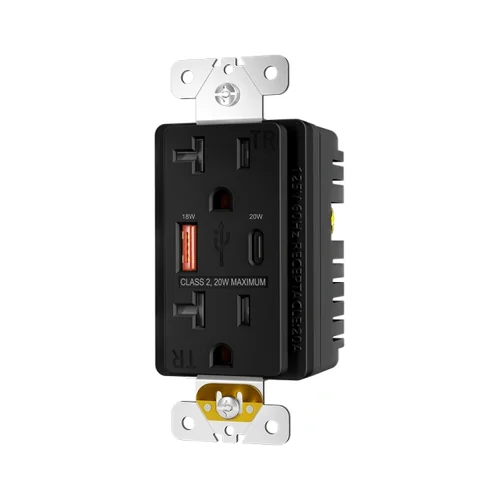

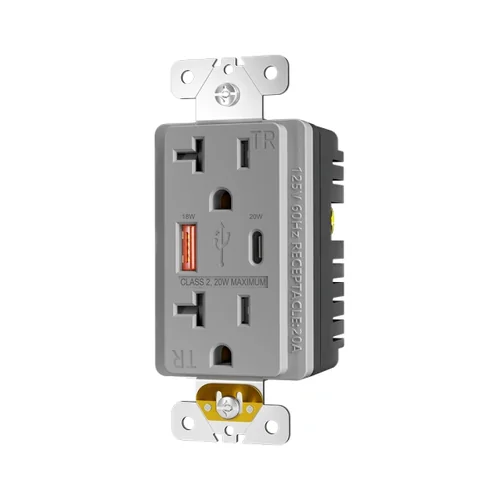

Click to enlarge8 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.
20A 20W PD Fast Charging USB Receptacle
20A 125V charging receptacle with a NEMA 5-20R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. Charging is built into the same wall box: 1 × USB-C PD 20W and 1 × USB-A QC 18W, 20W maximum combined output.
Part of the in-wall USB charging line — 24 models from 5V 2.4A per port up to 65W USB-C Power Delivery, on 15A and 20A receptacle faces.
| Amperage | 20A |
|---|---|
| Voltage | 125V |
| NEMA | 5-20R |
| USB Rating | PD20W |
| USB Ports | 1 × USB-C PD 20W and 1 × USB-A QC 18W, 20W maximum combined output |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What SMUT20PD20 is, and what you get
20A 125V charging receptacle with a NEMA 5-20R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. Charging is built into the same wall box: 1 × USB-C PD 20W and 1 × USB-A QC 18W, 20W maximum combined output.
Part of the in-wall USB charging line — 24 models from 5V 2.4A per port up to 65W USB-C Power Delivery, on 15A and 20A receptacle faces.
- This line is not ground-fault protected — where the code needs GFCI, order the combination models from the GFCI line.
- Shared output is not per-port output: read both figures on the specification sheet before specifying.
- Fast-charge models are deeper — confirm wall box depth before the order, not at installation.
- 20A NEMA 5-20R receptacle format for properly matched commercial branch circuits
- USB-C supports Power Delivery up to 20W for true fast smartphone charging
- USB-A supports Quick Charge up to 18W for broad device compatibility
- Built for indoor dry locations only — not GFCI and not weather resistant
- Tamper-resistant shutters support covered NEC 406.12 installation locations
- Wall plate included
Every field we hold for SMUT20PD20
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL, cUL |
|---|---|
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Own US Patents | Yes |
| Country of Origin | China |
| GFCI Type | None |
|---|---|
| Voltage | 125V |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | PD20W |
| USB A | QC Up to 18W |
| USB C | PD Up to 20W |
| Operating Temperature | -35C to 66C(-30F to 150F) |
| Pole | 2 |
| Wire | 3 |
| Number of Receptacles | 2 |
| Trip Level | None |
| Tamper Resistant | Yes |
| Weather Resistant | None |
| Color | White, Ivory, Almond, Black, Grey, Brown, Graphite |
|---|---|
| Finish | Satin |
| Features | Power Delivery Fast Charging, Quick Charge Compatibility, Tamper Resistant, Standard Receptacle |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Wiring Method | Back Wire and Side Wire |
|---|---|
| Grounding | Self Grounding |
| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Application Sector | Commercial, Multi-Dwelling Unit, Residential |
|---|
| Product Code | SMUT20PD20 |
|---|---|
| Wall Plate Included | Yes |
| NEMA Configuration | 5-20R |
|---|---|
| USB Ports | 1 × USB-C PD 20W and 1 × USB-A QC 18W, 20W maximum combined output |
| GFCI Protection | No |
| Application | Indoor Dry Commercial Locations |
Use this one, or step to another
- Facility managers upgrading VIP lounges, executive boardrooms, and premium public interiors
- Contractors specifying 20A dry-location receptacles with fast phone charging
- Hospitality and airport procurement teams modernizing guest-facing spaces
- B2B distributors sourcing higher-value PD/QC wall receptacles for project supply
- Choose a standard 5V USB receptacle when overnight charging is acceptable and speed is not a priority SXUT2050C — 20A High Output 5.0A Combination USB Receptacle
- Choose a 20A GFCI USB model when the installation is near sinks or other NEC-covered wet or damp locations UCWTST20 — 20A GFCI Outlet with USB-C and USB-A
- Choose a 45W to 65W+ charging solution when the project expects laptop or MacBook charging rather than mobile-device fast charging SMUT20PD65 — 20A NEMA 5-20R 65W PD USB-C + 18W QC USB-A
SMUT20PD20 on camera
Watch on YouTubeUL Listed 20A&15A GFCI Receptacle with Screwless Plate | B2B Wholesale
How to Wire a USB Receptacle (Standard 15A/20A NA Market)
The plate for this device is T9603 1-Gang Decorator Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where SMUT20PD20 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Receptacle & USB wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for SMUT20PD20Issued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with the port layout, per-port and shared output, and the receptacle rating.
- Listing reference for the exact model — tell us which standard your submittal names and we confirm what the model holds.
- Box-fill and depth data — combination charging devices are deeper; the fit is confirmed before the order.
- Packing and carton marking — case pack and barcode layout, including mixed orders of more than one USB model.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
SMUT20PD20 — answered
Is the SMUT20PD20 a GFCI as well?
No. This is a charging receptacle, and the published data for this line does not include ground-fault protection. Where the code requires GFCI protection at the device, order the combination models from the GFCI line instead — the charging sits inside a Class A self-test body there, and one wall box holds one device either way.
What can the USB-C port on the SMUT20PD20 charge?
It charges whatever the user connects: phones and tablets at the low tier, and at the fast-charge tiers the devices that actually negotiate Power Delivery. The port is a standard USB-C receptacle in the wall face — no adapter, no brick on the counter, and no cable to lose behind a nightstand.
Do I need the 20A version rather than this one?
Only if the branch circuit is 20A. 15A and 20A are circuit decisions, not an upgrade: the face geometry has to match the circuit, and the device rating on the drawing is what the inspector checks. If your schedule does not distinguish them, tell us the circuit and we will quote the correct face and flag the assumption in writing.
Will it fit the wall box that is already there?
Combination charging devices are deeper than a plain receptacle, which is the one thing worth checking before the order rather than during installation. Send us the box type you are installing into and we will confirm the fit; on older or shallow boxes this is where a retrofit plan changes.
Is the AC part tamper-resistant?
Yes — the receptacle portion of every model in this line has tamper-resistant shutters, and the AC face of this device is published as TR. The shutters apply to the AC slots only; the USB ports are separate charging interfaces.
Does it ship with a wall plate, and which one?
The plate is part of the device line item, and this face takes the decorator opening — T9603 1-Gang Decorator Receptacle Wallplate. If your standard is a mid-size or jumbo plate, that is a separate line you can add to the same order so the openings and the finish match on one delivery.
Answers above are specific to SMUT20PD20; the model list, quantities and project type is what we need to quote it back in one business day.
20A Dual USB-C Receptacle
20A High Output 5.0A Dual USB-C Receptacle
20A USB Type A/C Receptacle
20A Dual USB-C 20W PD Fast ChargingSend the list, get the package back
Model list, quantities and project type is all we need to start. The quotation comes back in one business day with the specification sheet for each line item, the listing reference it holds and the packing detail for the DC — one document, not four.
