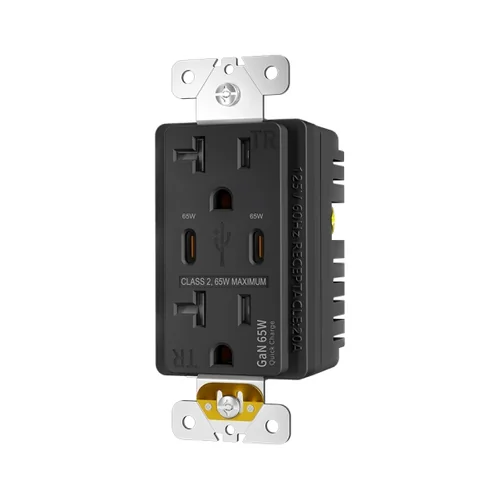

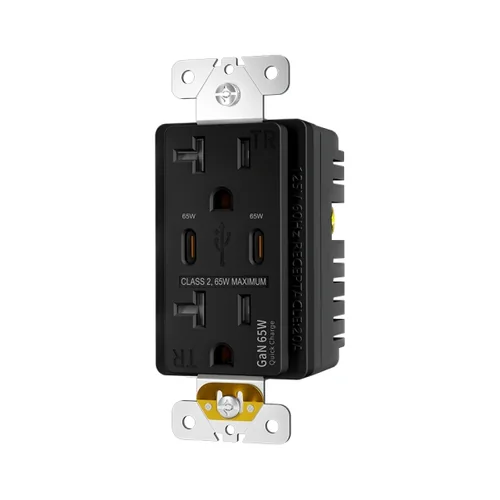

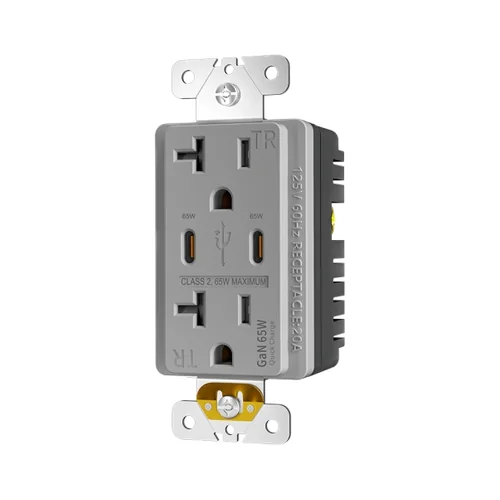

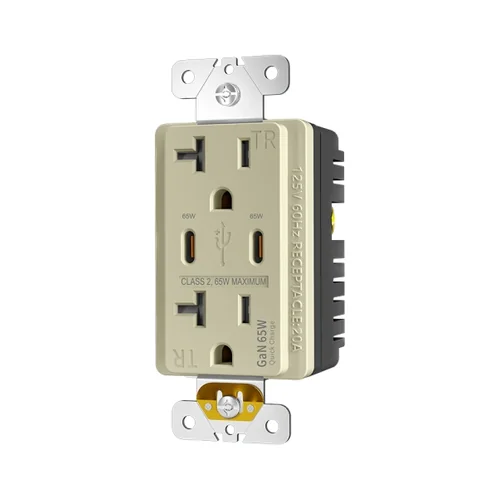

Click to enlarge8 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.
20A NEMA 5-20R Dual USB-C 65W PD Charging
20A 125V charging receptacle with a NEMA 5-20R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. Charging output is published as 65W maximum combined output.
Part of the in-wall USB charging line — 24 models from 5V 2.4A per port up to 65W USB-C Power Delivery, on 15A and 20A receptacle faces.
| Amperage | 20A |
|---|---|
| Voltage | 125V |
| NEMA | 5-20R |
| USB Output | 65W maximum combined output |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What SMUT20PD65C is, and what you get
20A 125V charging receptacle with a NEMA 5-20R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. Charging output is published as 65W maximum combined output.
Part of the in-wall USB charging line — 24 models from 5V 2.4A per port up to 65W USB-C Power Delivery, on 15A and 20A receptacle faces.
- This line is not ground-fault protected — where the code needs GFCI, order the combination models from the GFCI line.
- Shared output is not per-port output: read both figures on the specification sheet before specifying.
- Fast-charge models are deeper — confirm wall box depth before the order, not at installation.
- 20A NEMA 5-20R receptacle format for properly matched commercial branch-circuit applications
- Two USB-C ports support direct charging for modern laptops, tablets, and phones without a legacy USB-A port
- Maximum USB output reaches 65W for higher-demand charging than standard wall USB receptacles
- Dual-port charging uses intelligent power sharing within a 65W total output limit
- Tamper-resistant shutters support code-aware installation planning for covered NEC 406.12 locations
- Standard indoor dry-location design only — not GFCI and not weather resistant
Every field we hold for SMUT20PD65C
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL / cUL |
|---|---|
| Standards & Certifications | UL / cUL |
| Own US Patents | Not Stated |
| Country of Origin | China |
| GFCI Type | Standard Receptacle / Non-GFCI |
|---|---|
| Voltage | 125V |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | 65W Maximum Combined Output |
| USB-C Port 1 | Power Delivery with shared output up to 65W total |
| USB-C Port 2 | Power Delivery with shared output up to 65W total |
| Operating Temperature | Indoor Dry Location Use |
| Pole | 2 Pole, 3 Wire Grounding |
| Wire | Commercial 20A Branch Circuit Compatibility |
| Number of Receptacles | 1 Duplex AC Receptacle + 2 USB-C Charging Ports |
| Trip Level | Not Applicable |
| Safety Function | Tamper Resistant |
| Tamper Resistant | Yes |
| Weather Resistant | No |
| Color | White / Black / Ivory / Almond / Grey / Brown / Graphite |
|---|---|
| Finish | Decorator Style |
| Features | TR Shutters, Dual USB-C, 65W PD Charging, 20A T-Slot Format |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Wiring Method | Back Wire and Side Wire |
|---|---|
| Grounding | Grounding Receptacle |
| Terminal | Side and Back Wire |
| Application Sector | Commercial / Office / Boardroom / Lounge / Interior Project Use |
|---|
| Product Code | SMUT20PD65C |
|---|---|
| Wall Plate Included | Yes |
| NEMA Configuration | 5-20R |
|---|---|
| USB Output | 65W maximum combined output |
| GFCI Protection | No |
| Application | Indoor Dry Locations |
Use this one, or step to another
- Contractors specifying a NEMA 5-20R USB receptacle for correctly matched 20A commercial branch circuits
- Facility and project teams upgrading conference tables, executive desks, tech lounges, and premium shared work areas
- Distributors serving buyers who want direct laptop charging from the wall instead of scattered desktop adapters
- Commercial purchasers looking for a flagship USB-C receptacle rather than an entry-level phone-charging outlet
- Choose a 20A 36W dual USB-C model when the project mainly needs tablet and phone charging instead of regular laptop charging SMUT20PD36C — 20A NEMA 5-20R Dual USB-C 36W PD Charging
- Choose a 15A 65W dual USB-C model when site conditions do not support a 20A branch-circuit match SMUT15PD65C — 15A Dual USB-C 65W PD Charging
- Choose a USB GFCI model when the installation is near sinks, kitchens, bathrooms, breakroom wet zones, or other locations requiring ground-fault protection UWTST20 — 20A GFCI Outlet with Dual USB-A Ports
SMUT20PD65C on camera
Watch on YouTubeUL Listed 20A&15A GFCI Receptacle with Screwless Plate | B2B Wholesale
How to Wire a USB Receptacle (Standard 15A/20A NA Market)
The plate for this device is T9603 1-Gang Decorator Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where SMUT20PD65C is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Receptacle & USB wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for SMUT20PD65CIssued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with the port layout, per-port and shared output, and the receptacle rating.
- Listing reference for the exact model — tell us which standard your submittal names and we confirm what the model holds.
- Box-fill and depth data — combination charging devices are deeper; the fit is confirmed before the order.
- Packing and carton marking — case pack and barcode layout, including mixed orders of more than one USB model.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
SMUT20PD65C — answered
Is the SMUT20PD65C a GFCI as well?
No. This is a charging receptacle, and the published data for this line does not include ground-fault protection. Where the code requires GFCI protection at the device, order the combination models from the GFCI line instead — the charging sits inside a Class A self-test body there, and one wall box holds one device either way.
What can the USB-C port on the SMUT20PD65C charge?
It charges whatever the user connects: phones and tablets at the low tier, and at the fast-charge tiers the devices that actually negotiate Power Delivery. The port is a standard USB-C receptacle in the wall face — no adapter, no brick on the counter, and no cable to lose behind a nightstand.
What does the output figure actually mean on this model?
It is the shared output of the device, not what each port gives simultaneously: 65W maximum combined output. Read it as the ceiling the two ports draw from together. A 65W face is what removes a laptop brick from the desk; a 20W face is what charges a phone or a tablet at a rate the user will not complain about.
Do I need the 20A version rather than this one?
Only if the branch circuit is 20A. 15A and 20A are circuit decisions, not an upgrade: the face geometry has to match the circuit, and the device rating on the drawing is what the inspector checks. If your schedule does not distinguish them, tell us the circuit and we will quote the correct face and flag the assumption in writing.
Will it fit the wall box that is already there?
Combination charging devices are deeper than a plain receptacle, which is the one thing worth checking before the order rather than during installation. Send us the box type you are installing into and we will confirm the fit; on older or shallow boxes this is where a retrofit plan changes.
Is the AC part tamper-resistant?
Yes — the receptacle portion of every model in this line has tamper-resistant shutters, and the AC face of this device is published as TR. The shutters apply to the AC slots only; the USB ports are separate charging interfaces.
Answers above are specific to SMUT20PD65C; the model list, quantities and project type is what we need to quote it back in one business day.
