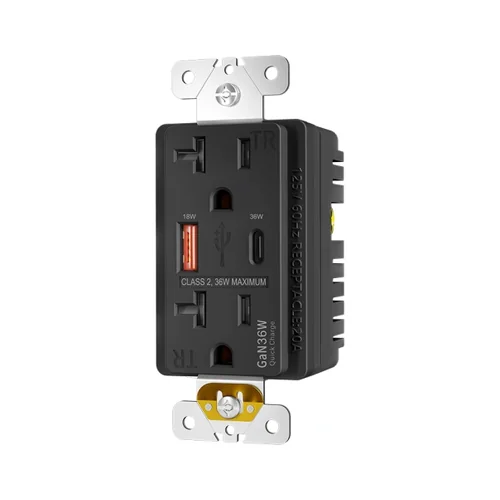

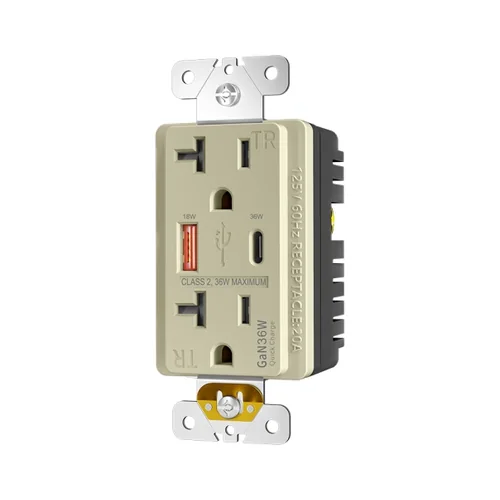

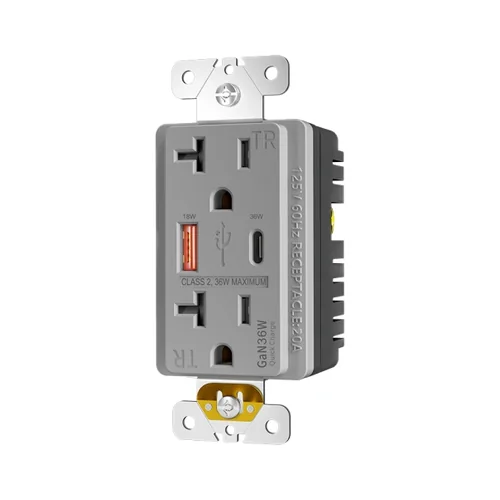

Click to enlarge8 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.
20A 36W PD + QC 18W Charging
20A 125V charging receptacle with a NEMA 5-20R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. Charging output is published as 36W maximum combined output.
Part of the in-wall USB charging line — 24 models from 5V 2.4A per port up to 65W USB-C Power Delivery, on 15A and 20A receptacle faces.
| Amperage | 20A |
|---|---|
| Voltage | 125V |
| NEMA | 5-20R |
| USB Output | 36W maximum combined output |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What SMUT20PD36 is, and what you get
20A 125V charging receptacle with a NEMA 5-20R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. Charging output is published as 36W maximum combined output.
Part of the in-wall USB charging line — 24 models from 5V 2.4A per port up to 65W USB-C Power Delivery, on 15A and 20A receptacle faces.
- This line is not ground-fault protected — where the code needs GFCI, order the combination models from the GFCI line.
- Shared output is not per-port output: read both figures on the specification sheet before specifying.
- Fast-charge models are deeper — confirm wall box depth before the order, not at installation.
- 20A NEMA 5-20R receptacle format for properly matched commercial branch circuits
- USB-C supports Power Delivery up to 36W for higher-output charging of phones, tablets, and lightweight laptops
- USB-A supports Quick Charge up to 18W for broad legacy device compatibility
- Maximum combined USB output is 36W, with dynamic sharing when both charging ports are used
- Tamper-resistant shutters support code-aware installation planning for covered NEC 406.12 locations
- Standard indoor dry-location design only — not GFCI and not weather resistant
Every field we hold for SMUT20PD36
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL / cUL |
|---|---|
| Standards & Certifications | UL / cUL |
| Own US Patents | Not Stated |
| Country of Origin | China |
| GFCI Type | Standard Receptacle / Non-GFCI |
|---|---|
| Voltage | 125V |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | 36W Maximum Combined Output |
| USB-C Port | Power Delivery up to 36W |
| USB-A Port | Quick Charge up to 18W |
| Operating Temperature | Indoor Dry Location Use |
| Pole | 2 Pole, 3 Wire Grounding |
| Wire | Commercial Branch Circuit Compatibility |
| Number of Receptacles | 1 Duplex AC Receptacle + 2 USB Charging Ports |
| Trip Level | Not Applicable |
| Safety Function | Tamper Resistant |
| Tamper Resistant | Yes |
| Weather Resistant | No |
| Color | White / Black / Ivory / Almond / Grey / Brown / Graphite |
|---|---|
| Finish | Decorator Style |
| Features | TR Shutters, 20A T-Slot, PD Fast Charging, QC Fast Charging |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Wiring Method | Back Wire and Side Wire |
|---|---|
| Grounding | Grounding Receptacle |
| Terminal | Side and Back Wire |
| Application Sector | Commercial / Office / Hospitality / Library / Interior Project Use |
|---|
| Product Code | SMUT20PD36 |
|---|---|
| Wall Plate Included | Yes |
| NEMA Configuration | 5-20R |
|---|---|
| USB Output | 36W maximum combined output |
| GFCI Protection | No |
| Application | Indoor Dry Locations |
Use this one, or step to another
- Contractors sourcing a 20A NEMA 5-20R USB receptacle for code-matched branch circuits in dry interior spaces
- Facility teams upgrading conference rooms, executive offices, libraries, and similar work zones where tablets and lightweight laptops are commonly charged
- Distributors serving commercial buyers who need a stronger USB charging spec than basic 20W wall outlets
- Project purchasers who want TR protection, 20A receptacle format, and higher USB output in one wall device
- Choose a 15A USB receptacle when the project is built around NEMA 5-15R use rather than 20A branch-circuit compatibility SMUT15PD36 — 15A 36W Simultaneous Fast Charging
- Choose a USB GFCI model when the installation falls in kitchens, bathrooms, break areas near sinks, or other locations requiring GFCI protection UCWTST20 — 20A GFCI Outlet with USB-C and USB-A
- Choose a 65W or higher USB-C model when the main requirement is routine charging for full-size laptop platforms rather than tablets and lightweight notebooks SMUT20PD65 — 20A NEMA 5-20R 65W PD USB-C + 18W QC USB-A
SMUT20PD36 on camera
Watch on YouTubeUL Listed 20A&15A GFCI Receptacle with Screwless Plate | B2B Wholesale
How to Wire a USB Receptacle (Standard 15A/20A NA Market)
The plate for this device is T9603 1-Gang Decorator Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where SMUT20PD36 is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Receptacle & USB wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for SMUT20PD36Issued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with the port layout, per-port and shared output, and the receptacle rating.
- Listing reference for the exact model — tell us which standard your submittal names and we confirm what the model holds.
- Box-fill and depth data — combination charging devices are deeper; the fit is confirmed before the order.
- Packing and carton marking — case pack and barcode layout, including mixed orders of more than one USB model.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
SMUT20PD36 — answered
Is the SMUT20PD36 a GFCI as well?
No. This is a charging receptacle, and the published data for this line does not include ground-fault protection. Where the code requires GFCI protection at the device, order the combination models from the GFCI line instead — the charging sits inside a Class A self-test body there, and one wall box holds one device either way.
What can the USB-C port on the SMUT20PD36 charge?
It charges whatever the user connects: phones and tablets at the low tier, and at the fast-charge tiers the devices that actually negotiate Power Delivery. The port is a standard USB-C receptacle in the wall face — no adapter, no brick on the counter, and no cable to lose behind a nightstand.
What does the output figure actually mean on this model?
It is the shared output of the device, not what each port gives simultaneously: 36W maximum combined output. Read it as the ceiling the two ports draw from together. A 65W face is what removes a laptop brick from the desk; a 20W face is what charges a phone or a tablet at a rate the user will not complain about.
Do I need the 20A version rather than this one?
Only if the branch circuit is 20A. 15A and 20A are circuit decisions, not an upgrade: the face geometry has to match the circuit, and the device rating on the drawing is what the inspector checks. If your schedule does not distinguish them, tell us the circuit and we will quote the correct face and flag the assumption in writing.
Will it fit the wall box that is already there?
Combination charging devices are deeper than a plain receptacle, which is the one thing worth checking before the order rather than during installation. Send us the box type you are installing into and we will confirm the fit; on older or shallow boxes this is where a retrofit plan changes.
Is the AC part tamper-resistant?
Yes — the receptacle portion of every model in this line has tamper-resistant shutters, and the AC face of this device is published as TR. The shutters apply to the AC slots only; the USB ports are separate charging interfaces.
Answers above are specific to SMUT20PD36; the model list, quantities and project type is what we need to quote it back in one business day.
