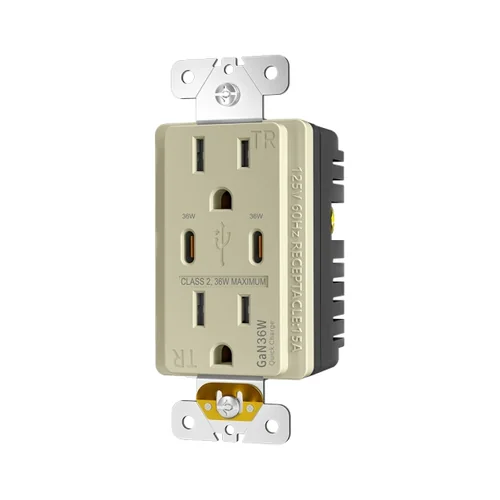

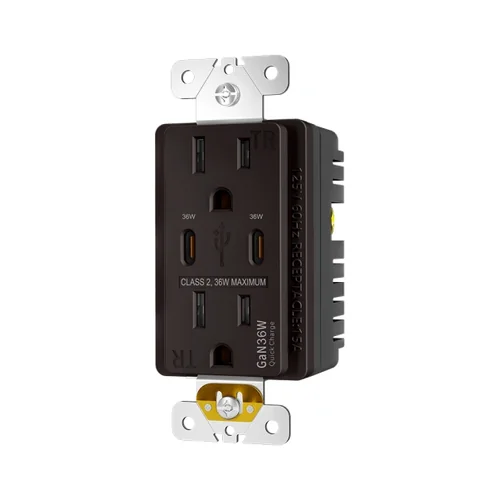

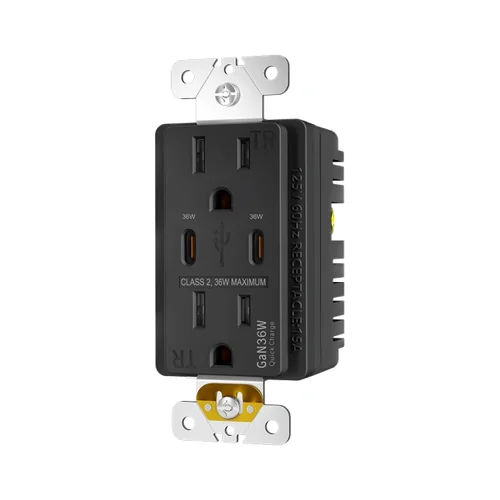

Click to enlarge8 factory photos of this exact model · shot on our Lishui line, no renders. Click a thumbnail to change the main image.
15A Dual USB-C 36W PD Charging
15A 125V charging receptacle with a NEMA 5-15R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. Charging output is published as 36W maximum combined output.
Part of the in-wall USB charging line — 24 models from 5V 2.4A per port up to 65W USB-C Power Delivery, on 15A and 20A receptacle faces.
| Amperage | 15A |
|---|---|
| Voltage | 125V |
| NEMA | 5-15R |
| USB Output | 36W maximum combined output |
Send the quantity, the project type and the colour. Quotation in one business day with the specification sheet, the listing reference for this model and the packing detail for the DC.
What SMUT15PD36C is, and what you get
15A 125V charging receptacle with a NEMA 5-15R face. The face is tamper-resistant, so the shutters stay closed unless both slots are pressed at once. Charging output is published as 36W maximum combined output.
Part of the in-wall USB charging line — 24 models from 5V 2.4A per port up to 65W USB-C Power Delivery, on 15A and 20A receptacle faces.
- This line is not ground-fault protected — where the code needs GFCI, order the combination models from the GFCI line.
- Shared output is not per-port output: read both figures on the specification sheet before specifying.
- Fast-charge models are deeper — confirm wall box depth before the order, not at installation.
- 15A standard NEMA 5-15R receptacle format for common indoor branch-circuit applications
- Two pure USB-C ports support modern charging deployment without a legacy USB-A port
- Either USB-C port can deliver up to 36W Power Delivery when used on its own
- Maximum combined USB output is 36W, with intelligent power sharing during dual-port use
- Tamper-resistant shutters support code-aware planning for covered NEC 406.12 installation types
- Standard indoor dry-location design only — not GFCI and not weather resistant
Every field we hold for SMUT15PD36C
Transcribed from the product data the quotation is generated from — grouped for review, not edited. Values are published as they stand, including the ones still marked for confirmation.
| Certified Safety | UL / cUL |
|---|---|
| Standards & Certifications | UL / cUL |
| Own US Patents | Not Stated |
| Country of Origin | China |
| GFCI Type | Standard Receptacle / Non-GFCI |
|---|---|
| Voltage | 125V |
| Amperage | 15A |
| NEMA | 5-15R |
| USB Rating | 36W Maximum Combined Output |
| USB-C Port 1 | Power Delivery up to 36W |
| USB-C Port 2 | Power Delivery up to 36W |
| Operating Temperature | Indoor Dry Location Use |
| Pole | 2 Pole, 3 Wire Grounding |
| Wire | Standard 15A Branch Circuit Compatibility |
| Number of Receptacles | 1 Duplex AC Receptacle + 2 USB-C Charging Ports |
| Trip Level | Not Applicable |
| Safety Function | Tamper Resistant |
| Tamper Resistant | Yes |
| Weather Resistant | No |
| Color | White / Black / Ivory / Almond / Grey / Brown / Graphite |
|---|---|
| Finish | Decorator Style |
| Features | TR Shutters, Dual USB-C, PD Fast Charging, Pure Type-C Design |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Wiring Method | Back Wire and Side Wire |
|---|---|
| Grounding | Grounding Receptacle |
| Terminal | Side and Back Wire |
| Application Sector | Hospitality / Residential / Office / Apartment / Dormitory Interior Use |
|---|
| Product Code | SMUT15PD36C |
|---|---|
| Wall Plate Included | Yes |
| NEMA Configuration | 5-15R |
|---|---|
| USB Output | 36W maximum combined output |
| GFCI Protection | No |
| Application | Indoor Dry Locations |
Use this one, or step to another
- Hospitality buyers upgrading guest rooms or suites for adapter-free charging with modern USB-C devices
- Residential and multi-family project teams standardizing around pure Type-C instead of mixed A/C port formats
- Contractors sourcing a 15A USB receptacle for dry indoor installations where tablets and lightweight laptops are commonly charged
- Distributors serving premium office, apartment, dormitory, and boutique hotel projects that want stronger PD output than entry-level USB outlets
- Choose a hybrid USB-A/C receptacle when the property still needs support for older USB-A charging cables and legacy devices SMUT15PD36 — 15A 36W Simultaneous Fast Charging
- Choose a USB GFCI model when the installation is near sinks, bathrooms, kitchens, or other locations requiring ground-fault protection UWTST15 — 15A Combination USB GFCI Receptacle with Dual USB-A
- Choose a 65W or higher USB-C model when the project expects routine charging for larger laptops rather than phones, tablets, and lightweight notebooks SMUT15PD65C — 15A Dual USB-C 65W PD Charging
SMUT15PD36C on camera
Watch on YouTubeUL Listed 20A&15A GFCI Receptacle with Screwless Plate | B2B Wholesale
How to Wire a USB Receptacle (Standard 15A/20A NA Market)
The plate for this device is T9603 1-Gang Decorator Receptacle Wallplate. Order the plate with the device so the opening, the face and the finish arrive on the same delivery — and confirm the wall box depth on any combination or fast-charge model before installation day.
Where SMUT15PD36C is specified
What ships with the quotation
- SY Outlet product catalogPDF · the full 54-model catalogOpen
- Receptacle & USB wiring guidePDF · wiring guideOpen
- Product videoOn our YouTube channelWatch
- Specification sheet for SMUT15PD36CIssued with the quotation, generated from the data on this pageOn request
- Specification sheet per model with the port layout, per-port and shared output, and the receptacle rating.
- Listing reference for the exact model — tell us which standard your submittal names and we confirm what the model holds.
- Box-fill and depth data — combination charging devices are deeper; the fit is confirmed before the order.
- Packing and carton marking — case pack and barcode layout, including mixed orders of more than one USB model.
Packaging as published: case pack per model, issued with the quotation · country of origin: China
SMUT15PD36C — answered
Is the SMUT15PD36C a GFCI as well?
No. This is a charging receptacle, and the published data for this line does not include ground-fault protection. Where the code requires GFCI protection at the device, order the combination models from the GFCI line instead — the charging sits inside a Class A self-test body there, and one wall box holds one device either way.
What can the USB-C port on the SMUT15PD36C charge?
It charges whatever the user connects: phones and tablets at the low tier, and at the fast-charge tiers the devices that actually negotiate Power Delivery. The port is a standard USB-C receptacle in the wall face — no adapter, no brick on the counter, and no cable to lose behind a nightstand.
What does the output figure actually mean on this model?
It is the shared output of the device, not what each port gives simultaneously: 36W maximum combined output. Read it as the ceiling the two ports draw from together. A 65W face is what removes a laptop brick from the desk; a 20W face is what charges a phone or a tablet at a rate the user will not complain about.
Will it fit the wall box that is already there?
Combination charging devices are deeper than a plain receptacle, which is the one thing worth checking before the order rather than during installation. Send us the box type you are installing into and we will confirm the fit; on older or shallow boxes this is where a retrofit plan changes.
Is the AC part tamper-resistant?
Yes — the receptacle portion of every model in this line has tamper-resistant shutters, and the AC face of this device is published as TR. The shutters apply to the AC slots only; the USB ports are separate charging interfaces.
Does it ship with a wall plate, and which one?
The plate is part of the device line item, and this face takes the decorator opening — T9603 1-Gang Decorator Receptacle Wallplate. If your standard is a mid-size or jumbo plate, that is a separate line you can add to the same order so the openings and the finish match on one delivery.
Answers above are specific to SMUT15PD36C; the model list, quantities and project type is what we need to quote it back in one business day.
15A Dual USB-C Receptacle
15A High Output 5.0A Dual USB-C Receptacle
15A USB Type A/C Receptacle
15A 20W PD Fast Charging USB ReceptacleSend the list, get the package back
Model list, quantities and project type is all we need to start. The quotation comes back in one business day with the specification sheet for each line item, the listing reference it holds and the packing detail for the DC — one document, not four.
